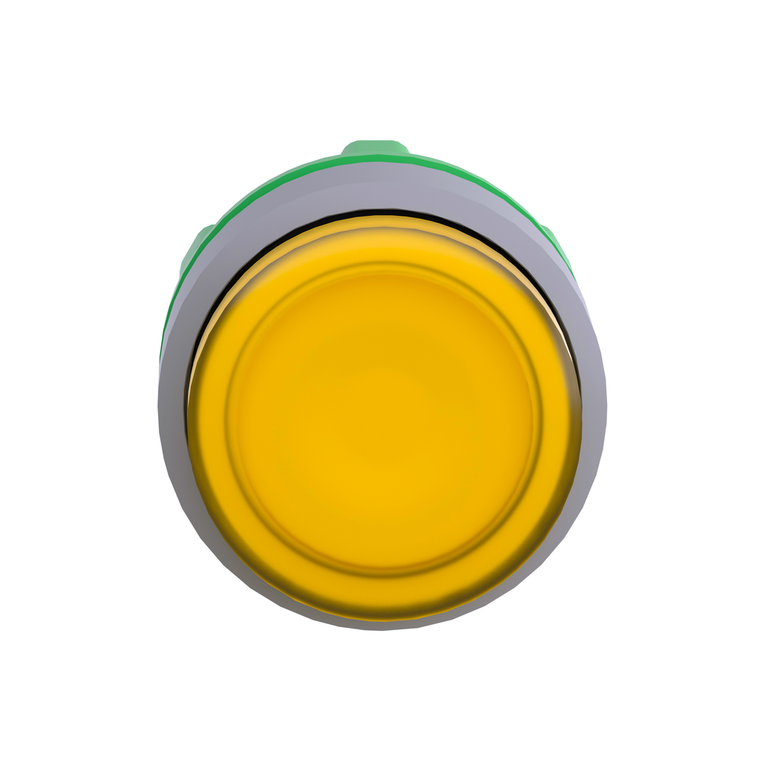

Schneider Electric ZB5AH83C0 Zb5 Yellow Illum. Led Push Push But. Pro
Schneider Electric
$45.45
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AH83C0 Zb5 Yellow Illum. Led Push Push But. Pro
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Certifications:
- CSA || UL Listed || GL || LROS (Lloyds register of shipping) || BV || DNV
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- ZB5
- Product Compatibility:
- universal LED
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Net Weight:
- 0.017 kg
- Product Or Component Type:
- head for illuminated push-button
- Standards:
- IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-1
- Operator Profile:
- yellow projecting, unmarked
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 33 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Electrical Shock Protection Class:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Diameter:
- 22 mm
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 500000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK05 IEC 50102
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- push-push
- Cad Overall Width:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
