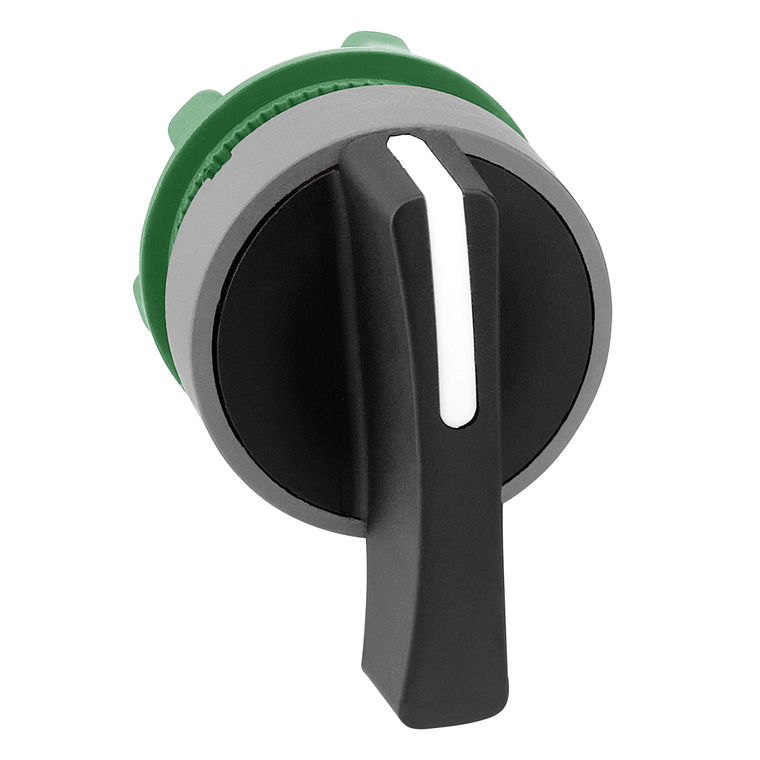

Schneider Electric ZB5AJ5C0 Selector Operating Head
Schneider Electric
$17.15
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- plastic colour plated grey
- Overvoltage Category:
- class II IEC 60536
- China Rohs Regulation:
- X
- Operator Additional Information:
- non padlockable
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Product Certifications:
- CSA || DNV || BV || GL || LROS (Lloyds register of shipping) || UL Listed
- Cad Overall Depth:
- 46 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Operator:
- to centre spring return
- Head Type:
- standard
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK06 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Height:
- 38 mm
- Range Of Product:
- Harmony XB5
- Ip Degree Of Protection:
- IP67 IEC 60529
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for selector switch
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Net Weight:
- 0.017 kg
- Operator Profile:
- black long handle
- Protective Treatment:
- TH
- Cad Overall Width:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
