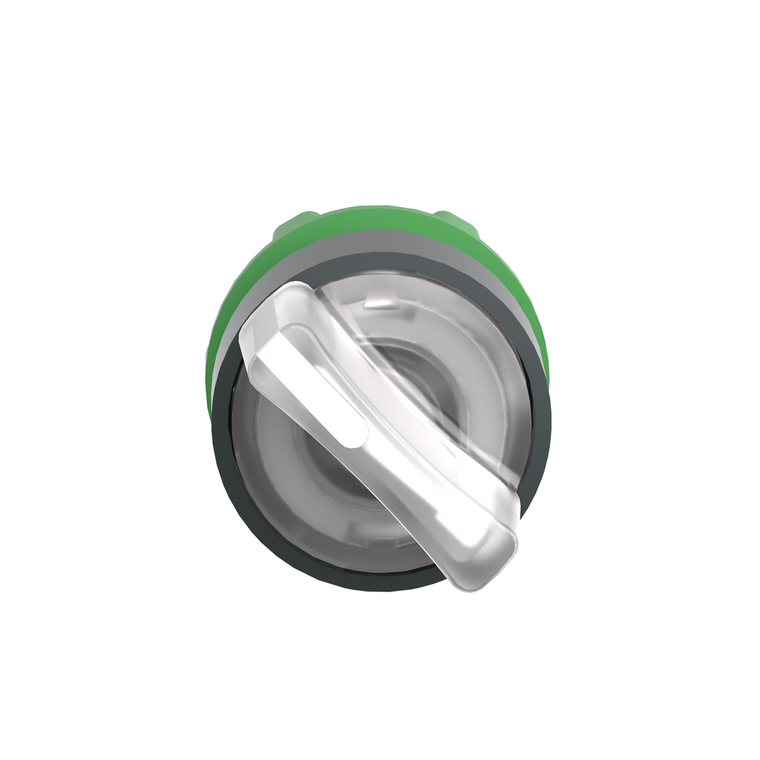

Schneider Electric ZB5AK1213 Selector Ill. Pushbotton
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Operator Position Information:
- 2 positions 90°
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- stay put
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Reach Free Of Svhc:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Product Certifications:
- DNV || BV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Warranty:
- 18 months
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Standards:
- EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Compatibility:
- universal LED
- Device Presentation:
- basic element
- Net Weight:
- 0.016 kg
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- Ik Degree Of Protection:
- IK04 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Width:
- 29 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Or Component Type:
- head for illuminated selector switch
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 1000000 cycles
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Cad Overall Height:
- 29 mm
- Operator Profile:
- white standard handle
- Environmental Disclosure:
- ENVPEP1710010EN
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 43 mm
- Bezel Material:
- dark grey plastic
- Toxic Heavy Metal Free:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Datasheet:
- View
