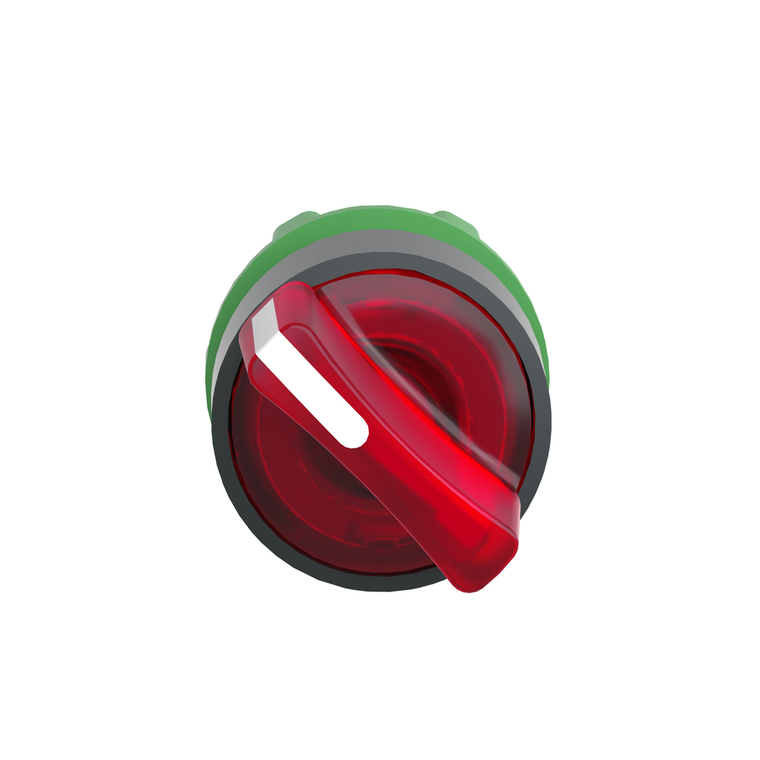

Schneider Electric ZB5AK1243 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AK1243 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AK1243

UPC:

3389110906073

MPN:

Condition:

New

Cad Overall Height:

29 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Width:

29 mm

Cad Overall Depth:

43 mm

Product Compatibility:

universal LED

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Circularity Profile:

ENVEOLI1710010EN

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Shape Of Signaling Unit Head:

round

Operator Profile:

red standard handle

Type Of Operator:

stay put

Range Of Product:

Harmony XB5

Net Weight:

0.016 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Sale Per Indivisible Quantity:

1

Warranty:

18 months

Mounting Diameter:

22 mm

Product Certifications:

GL || LROS (Lloyds register of shipping) || UL Listed || BV || DNV || CSA

Device Presentation:

basic element

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK04 IEC 50102

Reach Free Of Svhc:

Yes

Head Type:

standard

Overvoltage Category:

class II IEC 60536

Device Short Name:

ZB5

Product Or Component Type:

head for illuminated selector switch

Bezel Material:

dark grey plastic

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Operator Position Information:

2 positions 90°

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Standards:

EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1

Environmental Disclosure:

ENVPEP1710010EN

Protective Treatment:

TH

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mechanical Durability:

1000000 cycles

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Mercury Free:

Yes

Rohs Exemption Information:

Yes
