Schneider Electric ZB5AK1253 Selector Ill. Pushbotton
Schneider Electric
$35.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

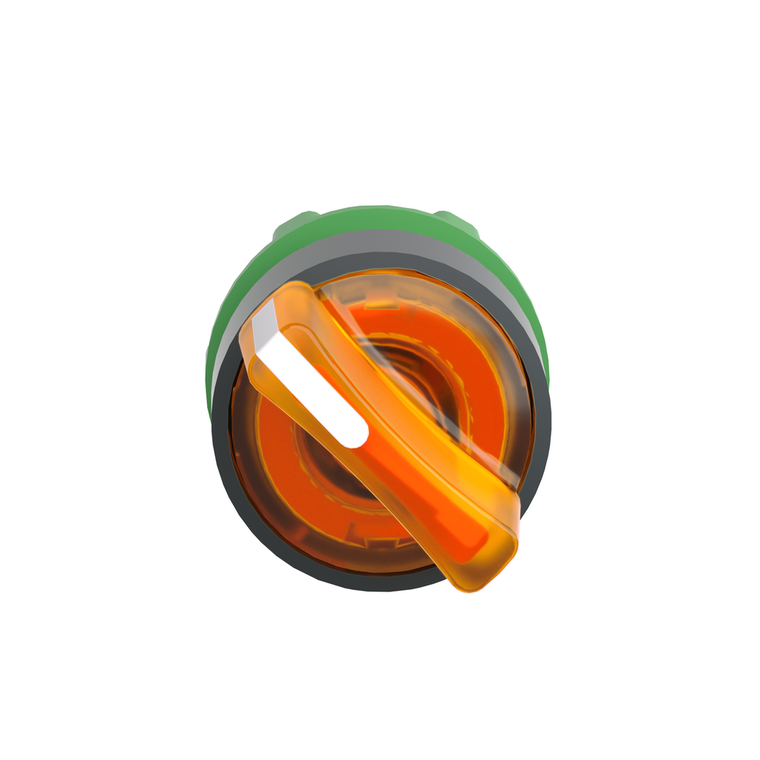

Schneider Electric ZB5AK1253 Selector Ill. Pushbotton
This Harmony XB5, illuminated orange selector switch head for universal LED with standard handle has 2 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Operator Position Information:
- 2 positions 90°
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK04 IEC 50102
- Device Short Name:
- ZB5
- Operator Profile:
- orange standard handle
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Type Of Operator:
- stay put
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 43 mm
- Cad Overall Width:
- 29 mm
- Standards:
- EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Bezel Material:
- dark grey plastic
- Cad Overall Height:
- 29 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Head Type:
- standard
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- universal LED
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1710010EN
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- BV || CSA || UL Listed || DNV || LROS (Lloyds register of shipping) || GL
- Product Or Component Type:
- head for illuminated selector switch
- Net Weight:
- 0.016 kg
- Circularity Profile:
- ENVEOLI1710010EN
- Datasheet:
- View
