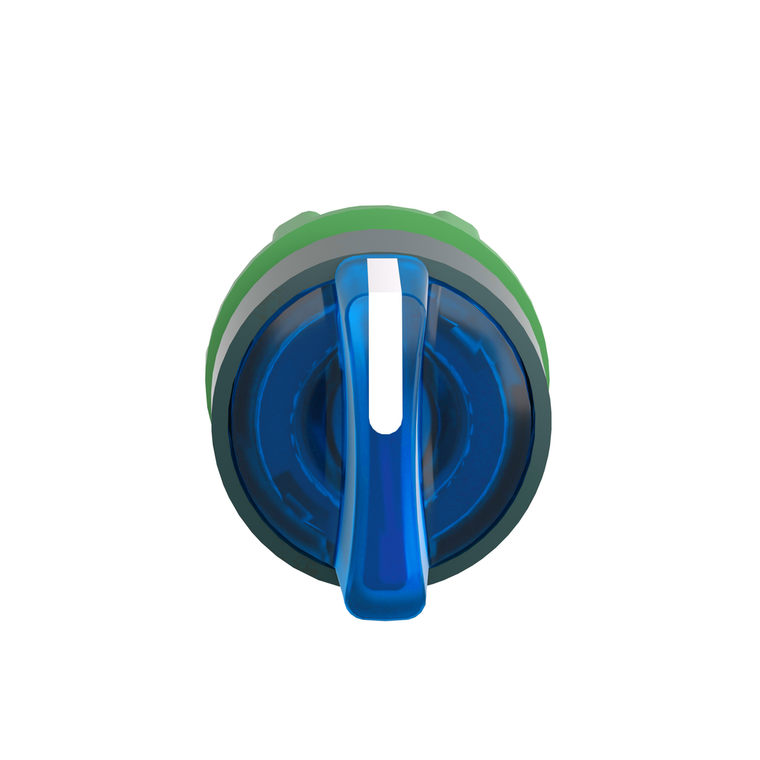

Schneider Electric ZB5AK1363 Selector Ill. Pushbotton
Schneider Electric
$25.73
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This blue illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Circularity Profile:
- ENVEOLI1710010EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Warranty:
- 18 months
- Product Certifications:
- DNV || UL Listed || LROS (Lloyds register of shipping) || BV || CSA || GL
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Compatibility:
- universal LED
- Type Of Operator:
- stay put
- Shape Of Signaling Unit Head:
- round
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Or Component Type:
- head for illuminated selector switch
- Range Of Product:
- Harmony XB5
- Head Type:
- standard
- Overvoltage Category:
- class II IEC 60536
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Operator Position Information:
- 3 positions +/- 45°
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- blue standard handle
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 43 mm
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 0.016 kg
- Mechanical Durability:
- 500000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Standards:
- UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ik Degree Of Protection:
- IK04 IEC 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 29 mm
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Datasheet:
- View
