Schneider Electric ZB5AK1433 Selector Ill. Pushbotton

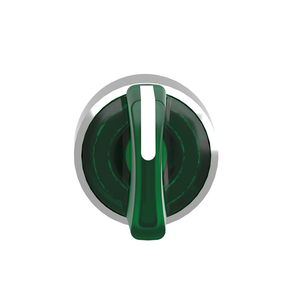

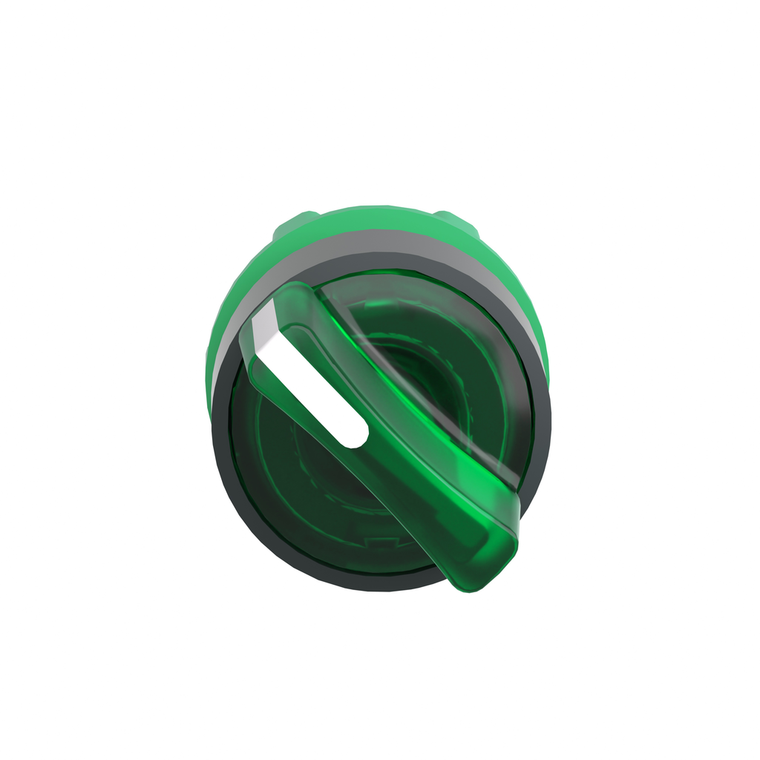

This green illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Type Of Operator:
- right to left spring return
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Net Weight:
- 0.017 kg
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI1710010EN
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Or Component Type:
- head for illuminated selector switch
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Position Information:
- 2 positions 90°
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Overvoltage Category:
- class II IEC 60536
- Product Compatibility:
- universal LED
- Cad Overall Height:
- 29 mm
- Mercury Free:
- Yes
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || DNV || BV || CSA || UL Listed
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK04 IEC 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 500000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Short Name:
- ZB5
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 29 mm
- Operator Profile:
- green standard handle
- Device Presentation:
- basic element
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 43 mm
- Reach Free Of Svhc:
- Yes
- Head Type:
- standard
- Shape Of Signaling Unit Head:
- round
