Schneider Electric ZB5AK1433C0 Selector Ill. Pushbotton
Schneider Electric
$33.66
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

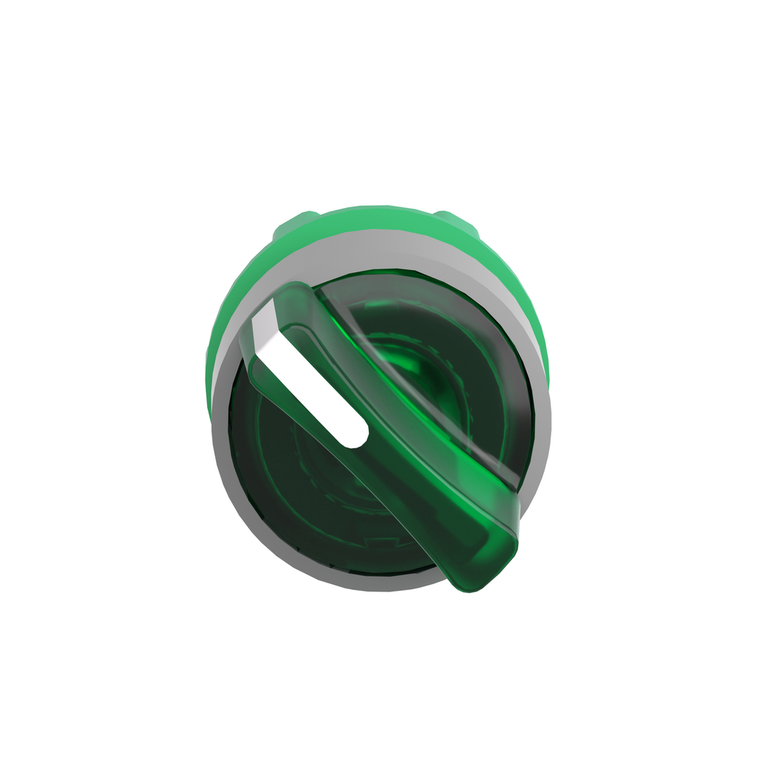

Schneider Electric ZB5AK1433C0 Selector Ill. Pushbotton
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Toxic Heavy Metal Free:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Position Information:
- 2 positions 90°
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 43 mm
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK04 IEC 50102
- Product Compatibility:
- universal LED
- Bezel Material:
- plastic colour plated grey
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Range Of Product:
- Harmony XB5
- Mercury Free:
- Yes
- Mechanical Durability:
- 500000 cycles
- Head Type:
- standard
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Height:
- 29 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || DNV || BV || CSA || UL Listed
- Device Presentation:
- basic element
- Type Of Operator:
- right to left spring return
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.017 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- green standard handle
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Product Or Component Type:
- head for illuminated selector switch
- Datasheet:
- View
