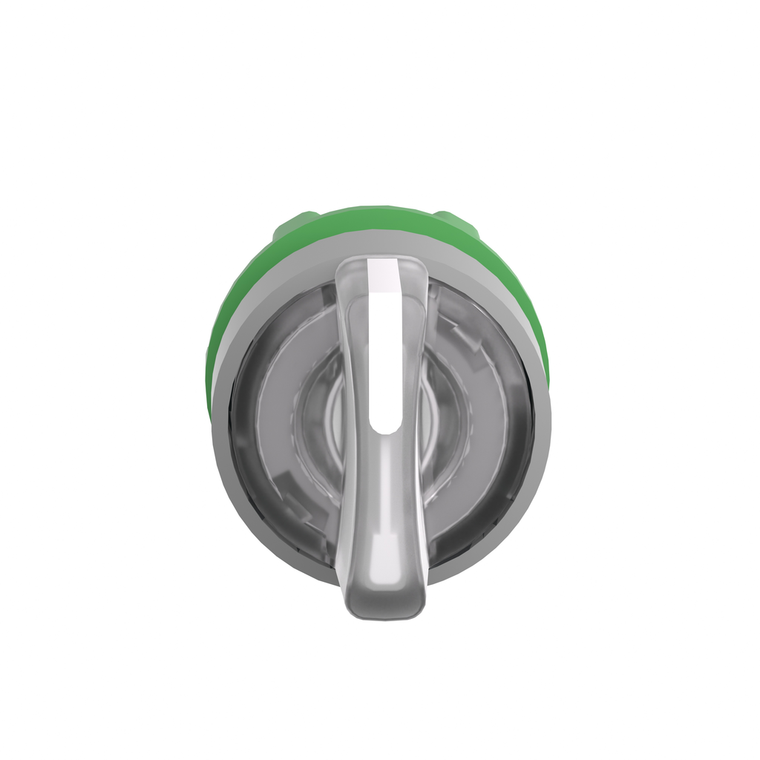

Schneider Electric ZB5AK1713C0 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AK1713C0 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AK1713C0

UPC:

3606489767662

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Profile:

white standard handle

Operator Position Information:

3 positions +/- 45°

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Head Type:

standard

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

China Rohs Regulation:

X

Net Weight:

0.016 kg

Product Or Component Type:

head for illuminated selector switch

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Sale Per Indivisible Quantity:

1

Cad Overall Depth:

43 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Cad Overall Width:

29 mm

Ik Degree Of Protection:

IK04 IEC 50102

Cad Overall Height:

29 mm

Overvoltage Category:

class II IEC 60536

Product Certifications:

CSA || LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV

Range Of Product:

Harmony XB5

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Device Presentation:

basic element

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TH

Shape Of Signaling Unit Head:

round

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Diameter:

22 mm

Standards:

EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB5

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Product Compatibility:

universal LED

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Mechanical Durability:

500000 cycles

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Operator:

left to centre spring return

Bezel Material:

plastic colour plated grey
