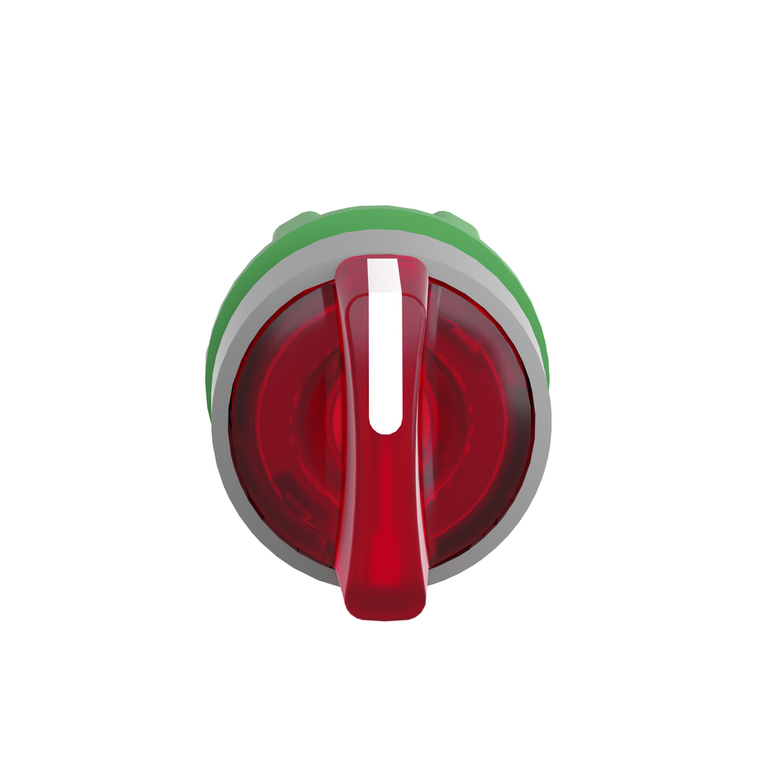

Schneider Electric ZB5AK1743C0 Selector Ill. Pushbotton
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- GL || BV || CSA || UL Listed || DNV || LROS (Lloyds register of shipping)
- Mercury Free:
- Yes
- Mechanical Durability:
- 500000 cycles
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Overvoltage Category:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Device Presentation:
- basic element
- Cad Overall Height:
- 29 mm
- Cad Overall Width:
- 29 mm
- Rohs Exemption Information:
- Yes
- Bezel Material:
- plastic colour plated grey
- Net Weight:
- 0.016 kg
- Reach Free Of Svhc:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- red standard handle
- Head Type:
- standard
- Standards:
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Product Compatibility:
- universal LED
- Product Or Component Type:
- head for illuminated selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 43 mm
- Type Of Operator:
- left to centre spring return
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK04 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Position Information:
- 3 positions +/- 45°
