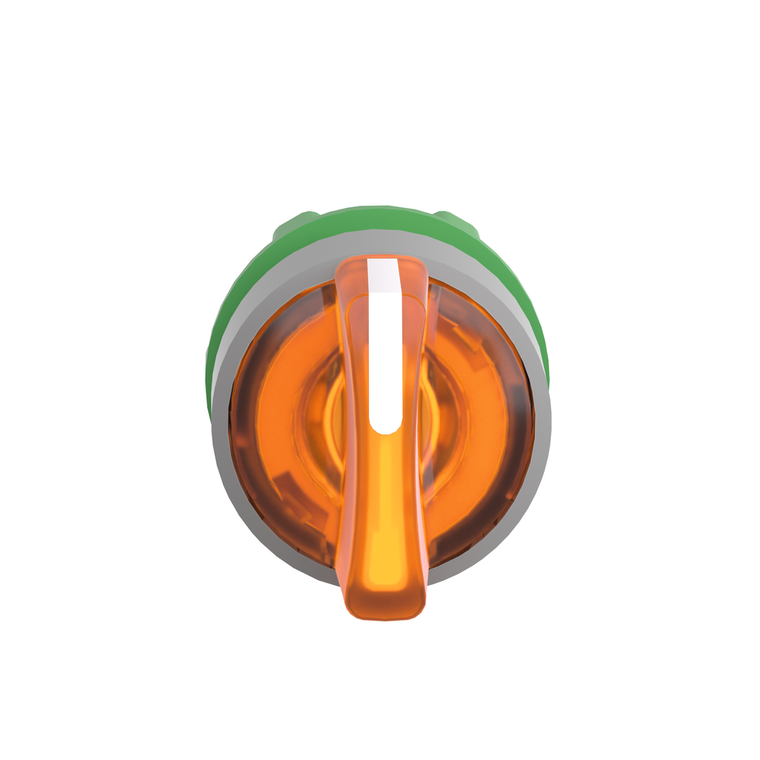

Schneider Electric ZB5AK1753C0 Selector Ill. Pushbotton
Schneider Electric
$30.58
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Mounting Diameter:
- 22 mm
- Standards:
- EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Cad Overall Width:
- 29 mm
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for illuminated selector switch
- Cad Overall Height:
- 29 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Head Type:
- standard
- Range Of Product:
- Harmony XB5
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Net Weight:
- 0.016 kg
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Shape Of Signaling Unit Head:
- round
- Mechanical Durability:
- 500000 cycles
- Cad Overall Depth:
- 43 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- left to centre spring return
- Bezel Material:
- plastic colour plated grey
- China Rohs Regulation:
- X
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Product Compatibility:
- universal LED
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV || GL
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ik Degree Of Protection:
- IK04 IEC 50102
- Operator Profile:
- orange standard handle
