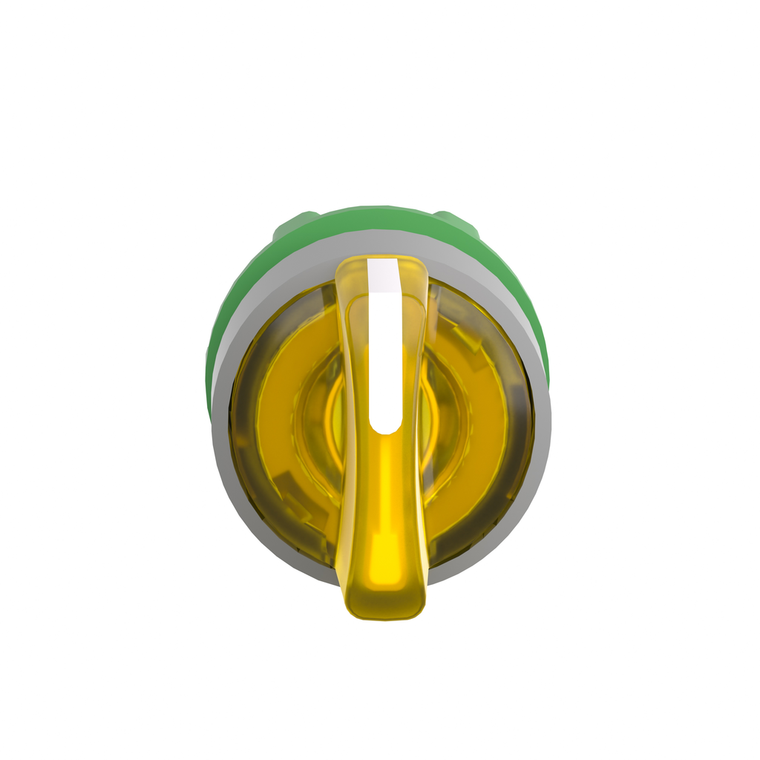

Schneider Electric ZB5AK1783C0 Xb5 Yellow Slector Switch 3 Pos.
Schneider Electric
$30.27
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mechanical Durability:
- 500000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- ZB5
- Product Compatibility:
- universal LED
- Bezel Material:
- plastic colour plated grey
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mercury Free:
- Yes
- Product Certifications:
- UL Listed || CSA || GL || BV || LROS (Lloyds register of shipping) || DNV
- Product Or Component Type:
- head for illuminated selector switch
- Cad Overall Depth:
- 43 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 29 mm
- Overvoltage Category:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK04 IEC 50102
- Device Presentation:
- basic element
- Net Weight:
- 0.016 kg
- Mounting Diameter:
- 22 mm
- Type Of Operator:
- left to centre spring return
- Reach Free Of Svhc:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Operator Profile:
- yellow standard handle
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
