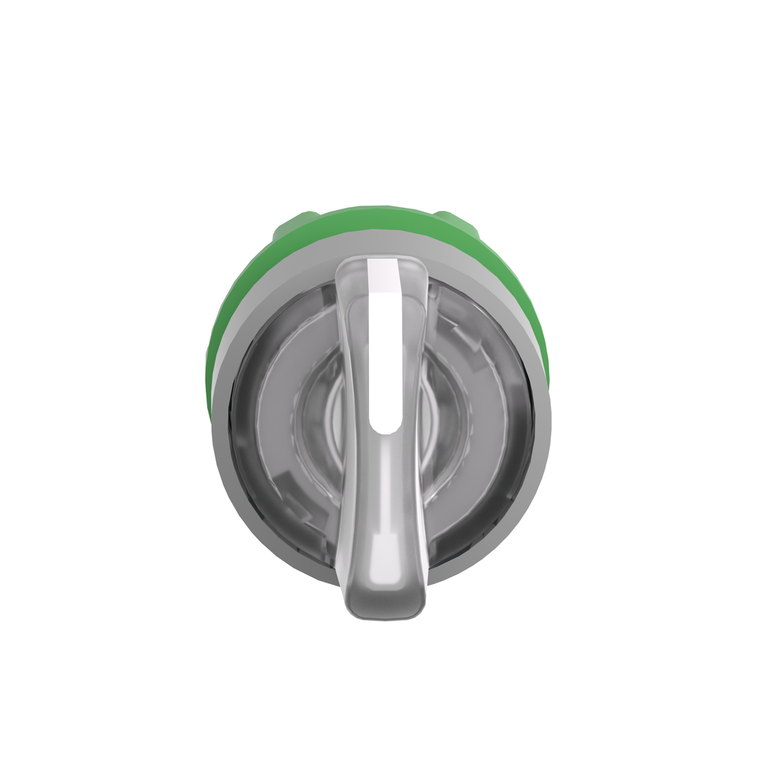

Schneider Electric ZB5AK1813C0 Selector Ill. Pushbotton
Schneider Electric
$30.58
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Mounting Diameter:
- 22 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Compatibility:
- universal LED
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for illuminated selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ik Degree Of Protection:
- IK04 IEC 50102
- Operator Profile:
- white standard handle
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Device Presentation:
- basic element
- Mechanical Durability:
- 500000 cycles
- Device Short Name:
- ZB5
- Type Of Operator:
- right to centre spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Product Certifications:
- BV || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || GL
- Bezel Material:
- plastic colour plated grey
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
- Net Weight:
- 0.016 kg
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 43 mm
