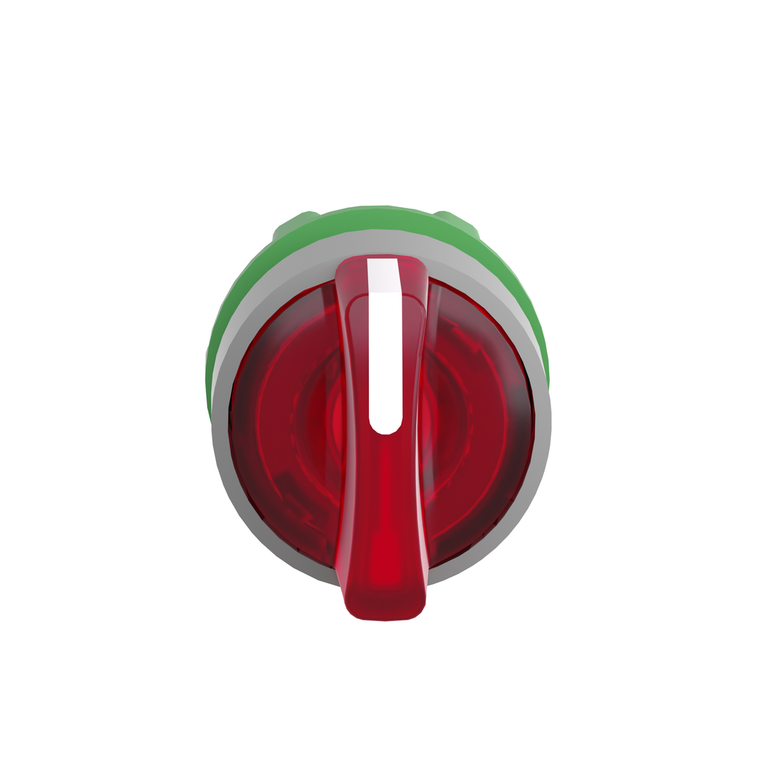

Schneider Electric ZB5AK1843C0 Selector Ill. Pushbotton
Schneider Electric
$41.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AK1843C0 Selector Ill. Pushbotton
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Head Type:
- standard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- Reach Free Of Svhc:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 500000 cycles
- Operator Profile:
- red standard handle
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for illuminated selector switch
- Bezel Material:
- plastic colour plated grey
- Type Of Operator:
- right to centre spring return
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- universal LED
- Range Of Product:
- Harmony XB5
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Cad Overall Height:
- 29 mm
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || CSA || GL || UL Listed || DNV
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Depth:
- 43 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK04 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.016 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Width:
- 29 mm
- Device Presentation:
- basic element
- Datasheet:
- View
