Schneider Electric ZB5AL3 Pushbutton Operator Head
Schneider Electric
$13.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AL3 Pushbutton Operator Head

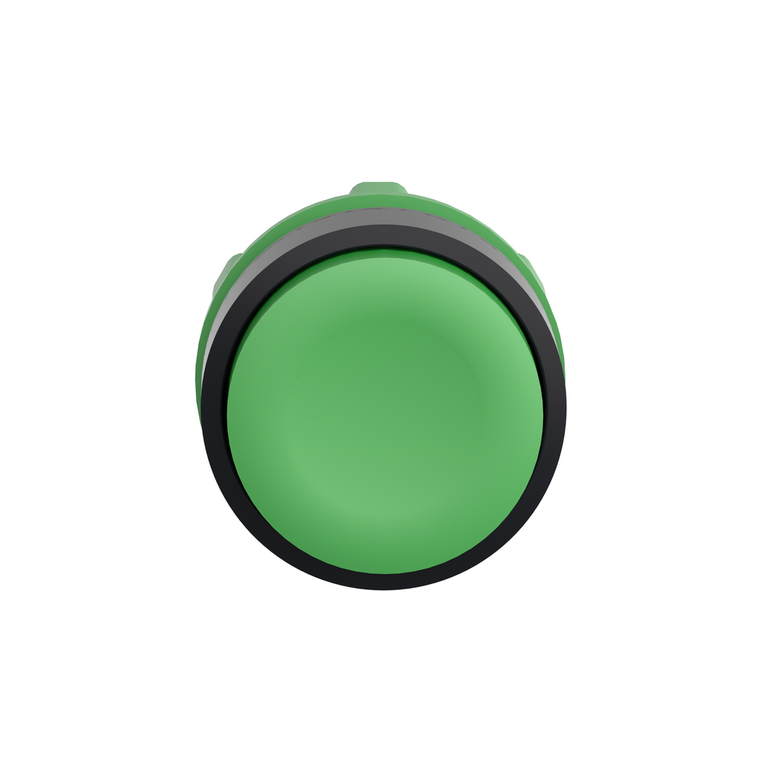

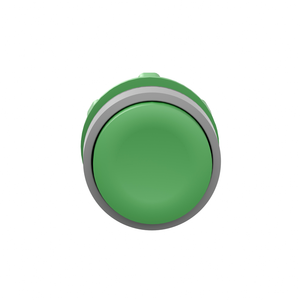

This green projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Height:
- 29 mm
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1710010EN
- Mounting Diameter:
- 22 mm
- Net Weight:
- 0.019 kg
- Device Presentation:
- basic element
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || BV || UL Listed || GL || DNV
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Standards:
- JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Width:
- 29 mm
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- spring return
- Bezel Material:
- dark grey plastic
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Head Type:
- standard
- China Rohs Regulation:
- X
- Overvoltage Category:
- class II IEC 60536
- Device Short Name:
- ZB5
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Product Or Component Type:
- head for non-illuminated push-button
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 33 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Operator Profile:
- green projecting, unmarked
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
