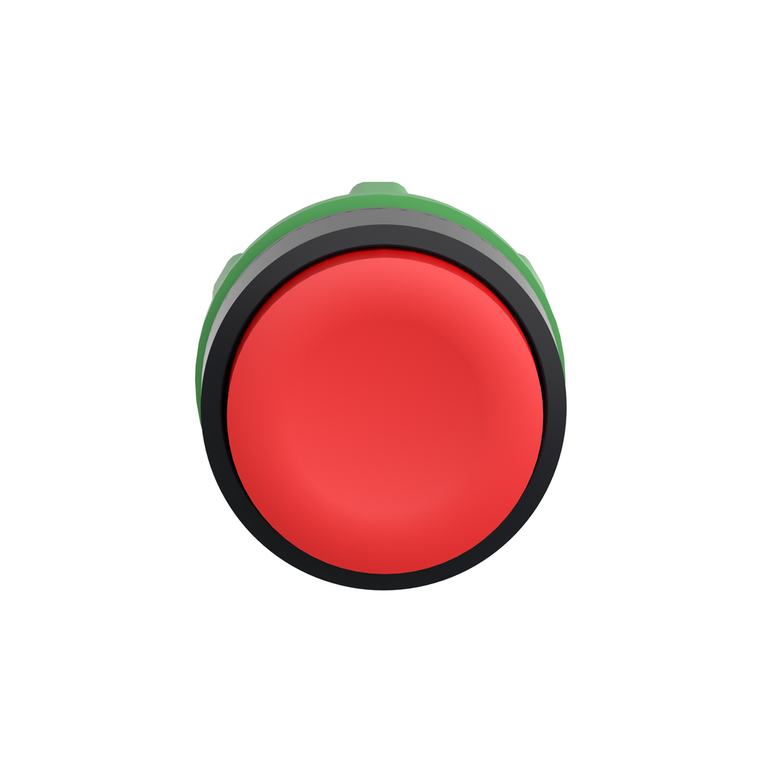

Schneider Electric ZB5AL4 Pushbutton Operator Head
Schneider Electric
$9.56
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Height:
- 29 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1710010EN
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Depth:
- 33 mm
- Product Certifications:
- GL || UL Listed || DNV || CSA || LROS (Lloyds register of shipping) || BV
- Operator Profile:
- red projecting, unmarked
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- spring return
- Device Short Name:
- ZB5
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- Product Or Component Type:
- head for non-illuminated push-button
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 29 mm
- Net Weight:
- 0.019 kg
- Bezel Material:
- dark grey plastic
- Standards:
- JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
