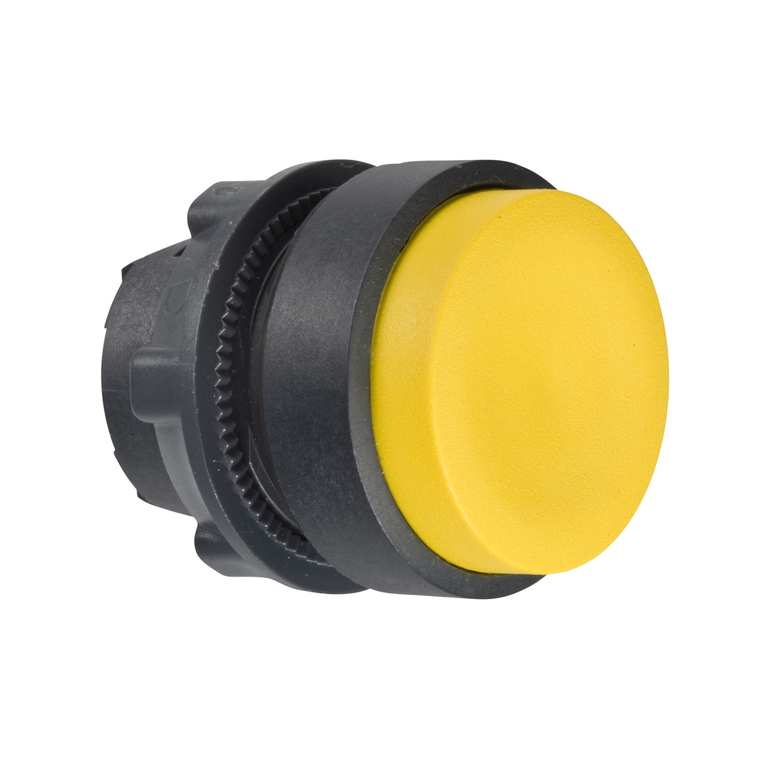

Schneider Electric ZB5AL5 Pushbutton Operator Head
Schneider Electric
$9.56
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This yellow projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB5
- Cad Overall Height:
- 29 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Depth:
- 33 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Profile:
- yellow projecting, unmarked
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for non-illuminated push-button
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Width:
- 29 mm
- Bezel Material:
- dark grey plastic
- Device Presentation:
- basic element
- Net Weight:
- 0.019 kg
- Head Type:
- standard
- Rohs Exemption Information:
- Yes
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || GL || DNV || CSA || UL Listed
- Environmental Disclosure:
- ENVPEP1710010EN
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
