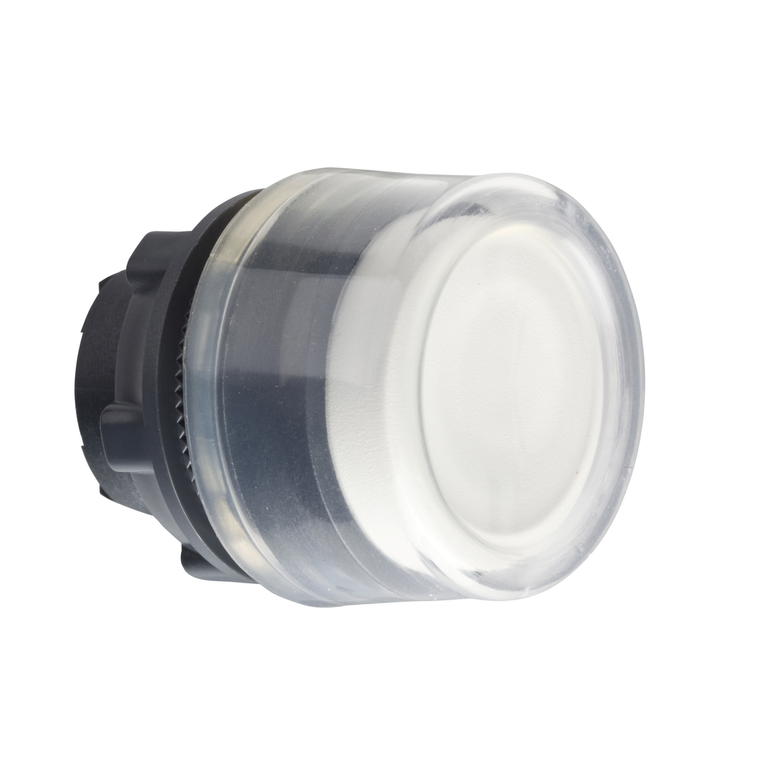

Schneider Electric ZB5APA1 Pushbutton Operator Head
Schneider Electric
$18.96
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This clear silicone booted white button head provides a simple solution to comply with hygiene requirement. This makes it ideal in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1710010EN
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || CSA || BV || GL || UL Listed
- Mechanical Durability:
- 10000000 cycles
- Overvoltage Category:
- class II IEC 60536
- Bezel Material:
- dark grey plastic
- Operator Additional Information:
- clear boot
- Cad Overall Depth:
- 37 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Or Component Type:
- head for non-illuminated push-button
- Mounting Diameter:
- 22 mm
- Head Type:
- standard
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- spring return
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 30 mm
- Operator Profile:
- white flush, unmarked
- Product Compatibility:
- not compatible with legend holder
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Height:
- 30 mm
- Standards:
- EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Protective Treatment:
- TH
- Net Weight:
- 20 kg
- Device Presentation:
- basic element
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Datasheet:
- View
