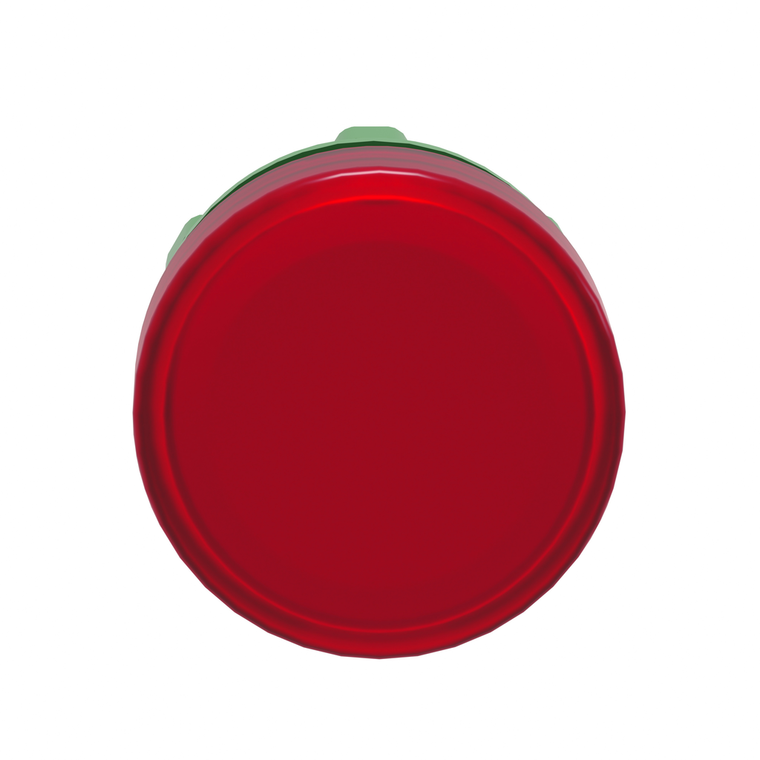

Schneider Electric ZB5AV043 Pilot Light Head
Schneider Electric
$5.59
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, plain lens head for pilot light with universal LED is red. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Overvoltage Category:
- class II IEC 60536
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Ik Degree Of Protection:
- IK05 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Additional Information:
- with plain lens
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- head for pilot light
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Bezel Material:
- dark grey plastic
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Circularity Profile:
- ENVEOLI1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cap/Operator Or Lens Colour:
- red
- Net Weight:
- 0.017 kg
- Product Compatibility:
- universal LED
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 31 mm
- Standards:
- CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Head Type:
- standard
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Reach Free Of Svhc:
- Yes
