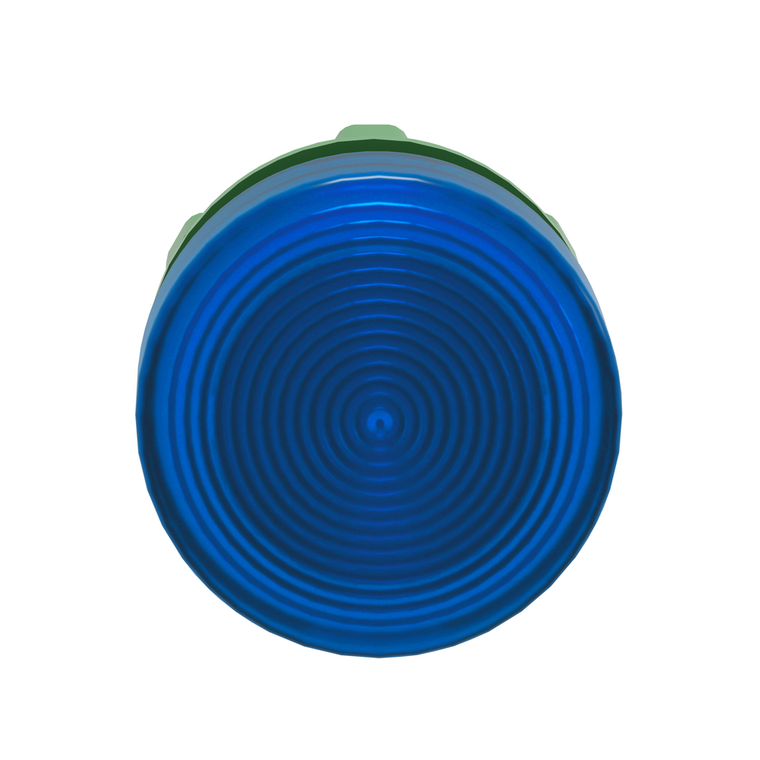

Schneider Electric ZB5AV063S Pilot Light Head
Schneider Electric
$14.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AV063S Pilot Light Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, grooved lens head for pilot light with universal LED is blue. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1710010EN
- China Rohs Regulation:
- X
- Operator Additional Information:
- with grooved lens
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Net Weight:
- 0.017 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Device Short Name:
- ZB5
- Range Of Product:
- Harmony XB5
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 31 mm
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK05 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Compatibility:
- universal LED
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Cap/Operator Or Lens Colour:
- blue
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width:
- 29 mm
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- class II IEC 60536
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Product Or Component Type:
- head for pilot light
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Characteristic:
- high ambient lighting environment
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- dark grey plastic
- Toxic Heavy Metal Free:
- Yes
