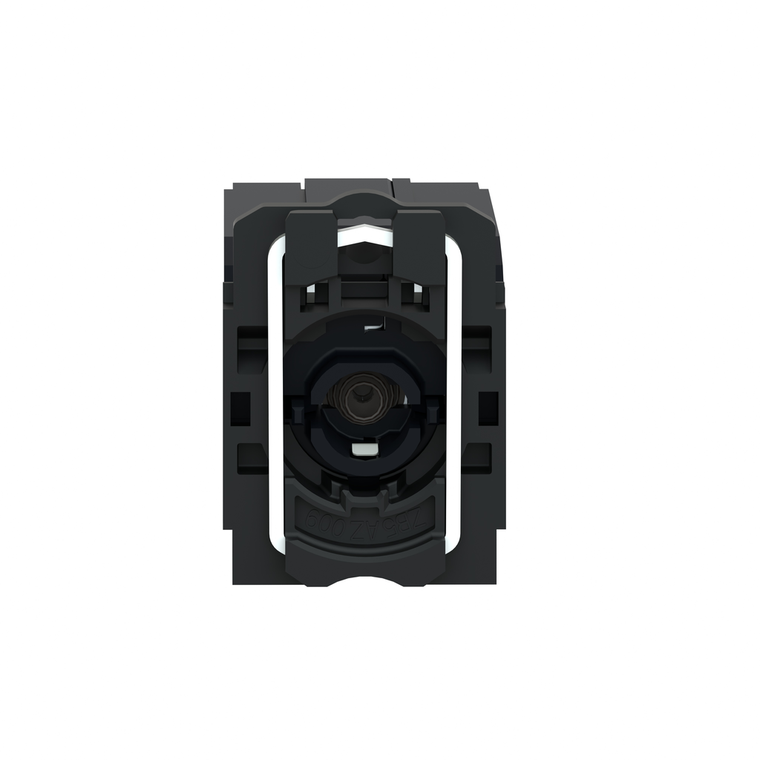

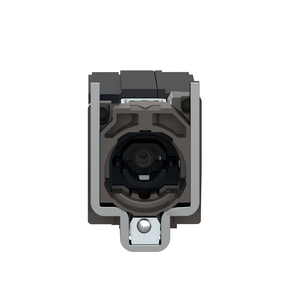

Schneider Electric ZB5AV3 120 V Transfo Pilot Light

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AV3 120 V Transfo Pilot Light

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AV3

UPC:

3389110908152

MPN:

Condition:

New

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Electrical Composition Code:

P4 || M9

Cad Overall Depth:

55 mm

Electrical Shock Protection Class:

class II IEC 60536

Ambient Air Temperature For Storage:

-40-70 °C

Light Block Supply:

via integral transformer 1.2 VA 6 V

Range Of Product:

Harmony XB5

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Net Weight:

0.099 kg

Rohs Exemption Information:

Yes

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Warranty:

18 months

Mounting Of Block:

front mounting

Device Presentation:

basic sub-assemblies

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Fixing Collar Material:

plastic

Protective Treatment:

TH

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Environmental Disclosure:

ENVPEP1710010EN

Standards:

JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-1

Product Or Component Type:

complete body/light block assembly

Cad Overall Width:

30 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Source:

incandescent

Device Short Name:

ZB5

Circularity Profile:

ENVEOLI1710010EN

Cad Overall Height:

42 mm

Sale Per Indivisible Quantity:

1

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Product Certifications:

BV || CSA || GL || UL Listed || LROS (Lloyds register of shipping) || DNV

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Terminals Description Iso N°1:

(X1-X2)PL

Signalling Type:

steady

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bulb Base:

BA 9s

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Ambient Air Temperature For Operation:

-40-55 °C

Mercury Free:

Yes

Datasheet:

View
