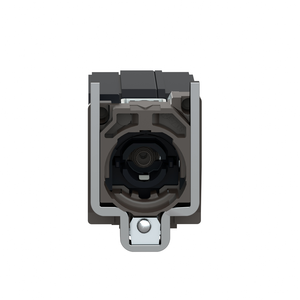

Schneider Electric ZB5AV5 400 V Transfo Pilot Light
Schneider Electric
$72.03
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Or Component Type:
- complete body/light block assembly
- Standards:
- IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Light Source:
- incandescent
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.099 kg
- China Rohs Regulation:
- X
- [Us] Rated Supply Voltage:
- 400 V AC 50/60 Hz
- Electrical Composition Code:
- P4 || M9
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Of Block:
- front mounting
- Device Presentation:
- basic sub-assemblies
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB5
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Fixing Collar Material:
- plastic
- Warranty:
- 18 months
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV
- Circularity Profile:
- ENVEOLI1710010EN
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Environmental Disclosure:
- ENVPEP1710010EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Block Supply:
- via integral transformer 1.2 VA 6 V
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Bulb Base:
- BA 9s
- Electrical Shock Protection Class:
- class II IEC 60536
- Device Short Name:
- ZB5
- Cad Overall Depth:
- 55 mm
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Cad Overall Height:
- 42 mm
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Cad Overall Width:
- 30 mm
- Mercury Free:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Terminals Description Iso N°1:
- (X1-X2)PL
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Sale Per Indivisible Quantity:
- 1
- Signalling Type:
- steady
