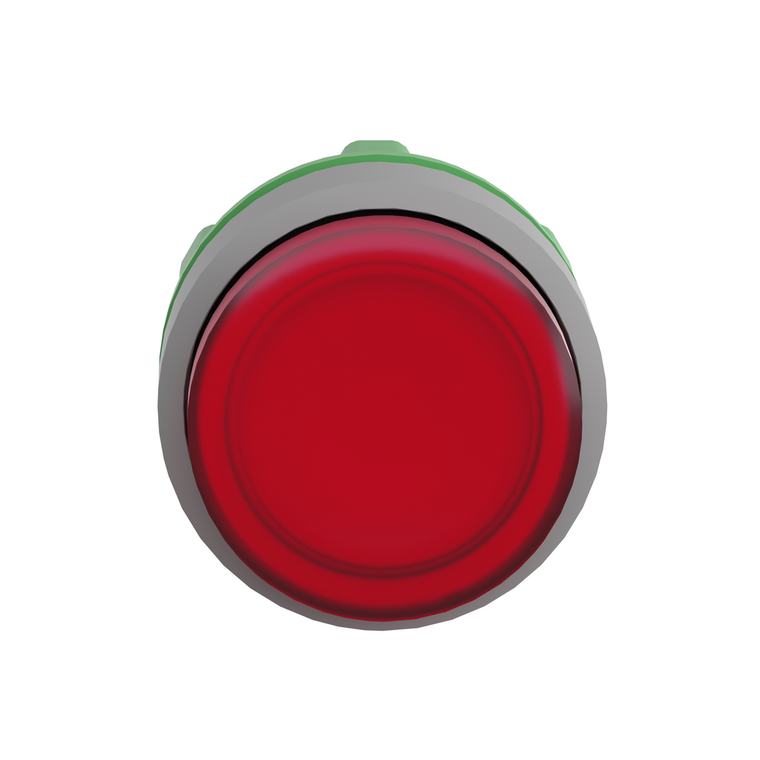

Schneider Electric ZB5AW143C0 Red Projecting Illum Pb Head - Integral

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW143C0 Red Projecting Illum Pb Head - Integral

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW143C0

UPC:

3606489769642

MPN:

Condition:

New

Device Presentation:

basic sub-assemblies

Cad Overall Height:

29 mm

Product Certifications:

CSA || UL Listed || LROS (Lloyds register of shipping) || BV || GL || DNV

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

33 mm

Overvoltage Category:

class II IEC 60536

Product Or Component Type:

head for illuminated push-button

Cap/Operator Or Lens Colour:

red

Cad Overall Width:

29 mm

Main Group:

illum push-button

Operator Profile:

red projecting, unmarked

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Ip Degree Of Protection:

IP66 IEC 60529

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Range Of Product:

Harmony XB5

Net Weight:

0.018 kg

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Marking:

unmarked

Mounting Diameter:

22 mm

Operator Additional Information:

with plain lens

Group Of Product:

proj push integral LED

Head Type:

standard

Mechanical Durability:

10000000 cycles

Mercury Free:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Device Short Name:

ZB5

Product Compatibility:

universal LED

China Rohs Regulation:

X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protective Treatment:

TC

Ik Degree Of Protection:

IK05 EN 50102

Toxic Heavy Metal Free:

Yes

Shape Of Signaling Unit Head:

round

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Operation:

-40-70 °C

Sale Per Indivisible Quantity:

1

Bezel Material:

plastic colour plated grey

Type Of Operator:

spring return

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Datasheet:

View
