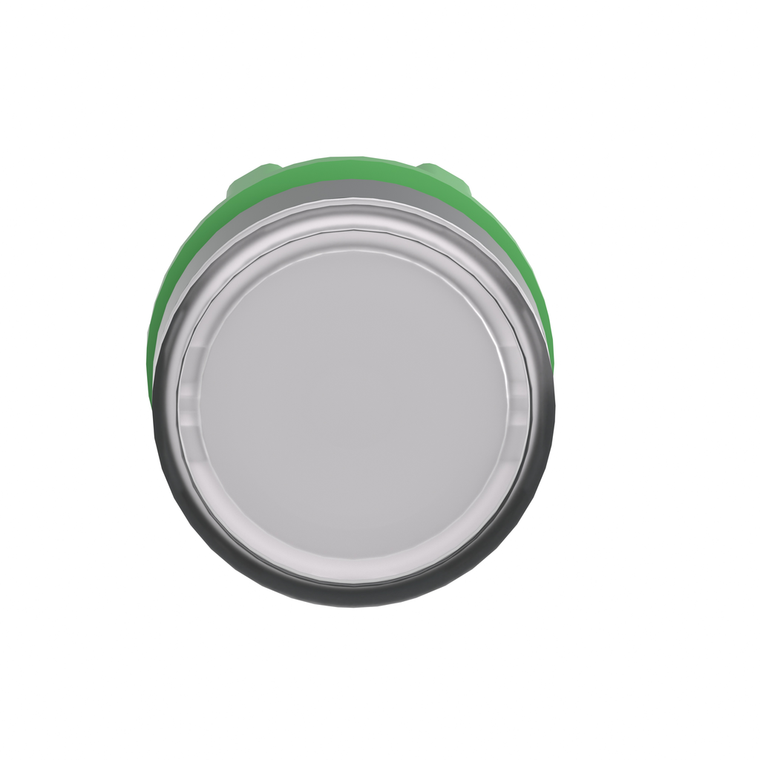

Schneider Electric ZB5AW313 Illuminated Pushbutton He
Schneider Electric
$13.67
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, plain lens illuminated white flush head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Marking:
- unmarked
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Additional Information:
- with plain lens
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Type Of Operator:
- spring return
- Protective Treatment:
- TC
- Cap/Operator Or Lens Colour:
- white
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 29 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- dark grey plastic
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Net Weight:
- 0.017 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Group Of Product:
- flush push integral LED
- Standards:
- UL 508 || GB 14048.5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Head Type:
- standard
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Range Of Product:
- Harmony XB5
- Product Or Component Type:
- head for illuminated push-button
- Sustainable Offer Status:
- Green Premium product
- Ik Degree Of Protection:
- IK05 EN 50102
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Certifications:
- DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || BV || GL
- Shape Of Signaling Unit Head:
- round
- Product Compatibility:
- universal LED
- Cad Overall Height:
- 29 mm
- Operator Profile:
- white flush, unmarked
- Main Group:
- illum push-button
- Cad Overall Depth:
- 30 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 10000000 cycles
- Mounting Diameter:
- 22 mm
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Presentation:
- basic sub-assemblies
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
