Schneider Electric ZB5AW7A1715 Plastic Double Headed Pushbuttons With P

Schneider Electric ZB5AW7A1715 Plastic Double Headed Pushbuttons With P

Schneider Electric
SKU:
ZB5AW7A1715
|
UPC:
3389119043403
Availability:
Contact us to confirm availability and lead times.
$74.25
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

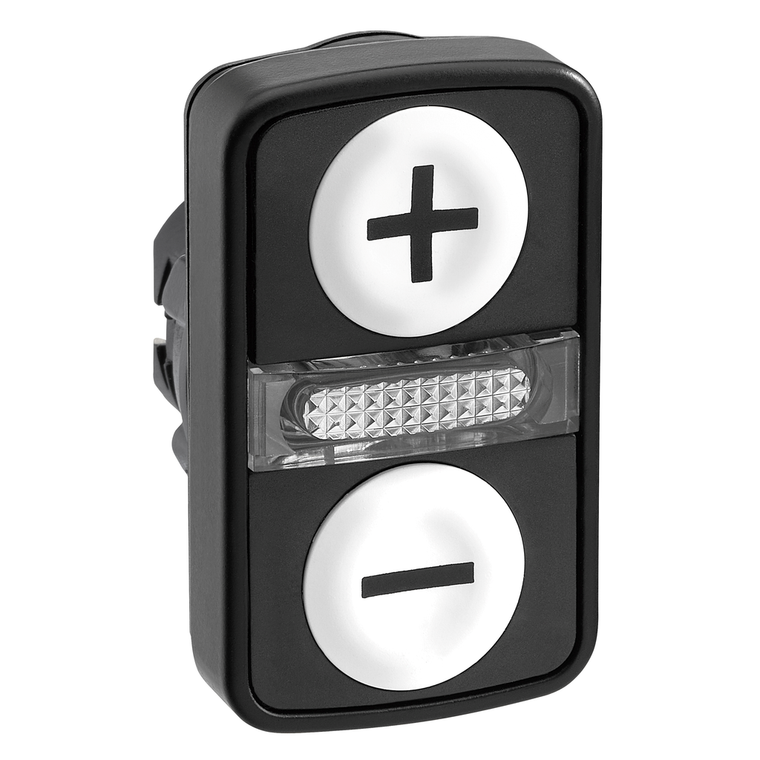

This double head has 2 white buttons and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to its pilot light, clear colors and by touch due to flush elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Mounting Diameter:
22 mm
Electrical Shock Protection Class:
class II IEC 60536
Circularity Profile:
ENVEOLI1710010EN
Device Presentation:
basic sub-assemblies
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Colour Of Marking:
black marking when white caps
Ambient Air Temperature For Operation:
-25-70 °C
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
Cad Overall Depth:
30 mm
Standards:
EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
Environmental Disclosure:
ENVPEP1710010EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Height:
50 mm
Product Or Component Type:
head for illuminated double-headed push-button
Shape Of Signaling Unit Head:
rectangular
Mechanical Durability:
1000000 cycles
Product Compatibility:
integral LED
Operators Description:
white ''+'' - white ''-''
Bezel Material:
dark grey plastic
Station Name:
XALD 1 cut-out
Cad Overall Width:
30 mm
Sale Per Indivisible Quantity:
1
Product Certifications:
UL Listed || CSA || BV || GL || DNV || LROS (Lloyds register of shipping)
Mercury Free:
Yes
Device Short Name:
ZB5
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK05 IEC 50102
Range Of Product:
Harmony XB5
Ip Degree Of Protection:
IP66 || IP67 || IP69 || IP69K
Net Weight:
0.023 kg
Type Of Operator:
spring return
Head Type:
standard
Operator Profile:
white flush, + black) || white flush, - black)
Operator Profile:
2 flush push-buttons - 1 central pilot light
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage:
-40-70 °C
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
