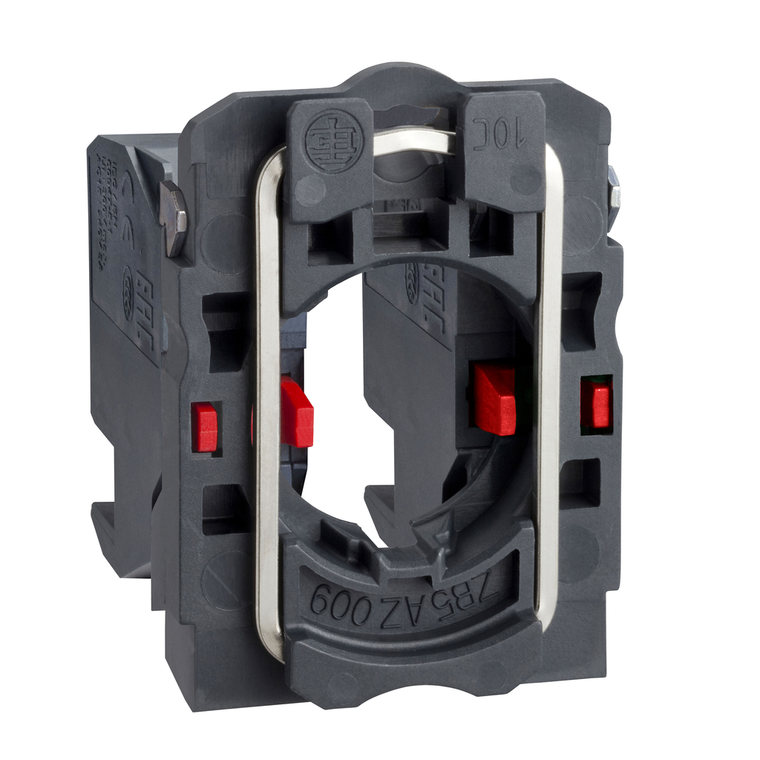

Schneider Electric ZB5AZ1044 Connect Terminal Cont Bod

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AZ1044 Connect Terminal Cont Bod

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AZ1044

UPC:

3389110925739

MPN:

Condition:

New

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Harmony XB5

Rohs Exemption Information:

Yes

Standards:

IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1

Ambient Air Temperature For Operation:

-40-70 °C

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Short-Circuit Protection:

4 A cartridge fuse gG IEC 60947-5-1

Contacts Material:

silver alloy (Ag/Ni)

Terminals Description Iso N°1:

(11-12)NC

Product Or Component Type:

complete body/contact assembly

Sustainable Offer Status:

Green Premium product

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Durability:

1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13

Fixing Collar Material:

plastic

Cad Overall Height:

42 mm

Toxic Heavy Metal Free:

Yes

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Mechanical Durability:

10000000 cycles

Device Short Name:

ZB5

Net Weight:

0.026 kg

Operating Travel:

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contact Block Type:

single

Contact Operation:

slow-break

Product Certifications:

UL || BV || GL || CSA || LROS (Lloyds register of shipping) || DNV

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contacts Type And Composition:

2 NC

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1710010EN

Sale Per Indivisible Quantity:

1

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Positive Opening:

with IEC 60947-5-1 appendix K

Cad Overall Depth:

32 mm

Connections - Terminals:

plug-in connector

Ip Degree Of Protection:

IP20 IEC 60529

Mercury Free:

Yes

Protective Treatment:

TH

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1710010EN

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Head Type:

standard

Device Composition:

fixing collar || body

Cad Overall Width:

30 mm

Contacts Usage:

standard contacts
