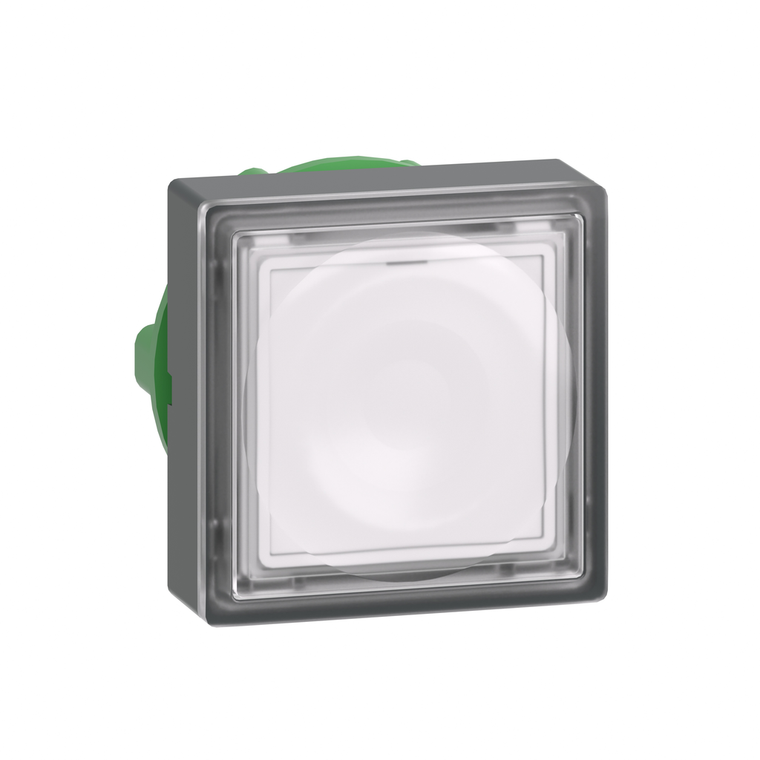

Schneider Electric ZB5CW313 Illuminated Pushbutton He
Schneider Electric
$19.85
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- UL Listed || BV || CSA || GL || LROS (Lloyds register of shipping) || DNV
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 30 mm
- Warranty:
- 18 months
- Protective Treatment:
- TC
- Cad Overall Width:
- 30 mm
- Product Compatibility:
- universal LED
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1710010EN
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cap/Operator Or Lens Colour:
- white
- Mechanical Durability:
- 10000000 cycles
- Marking:
- unmarked
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Cad Overall Depth:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Or Component Type:
- head for illuminated push-button
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB5
- Operator Profile:
- white flush, unmarked
- Group Of Product:
- flush push with inser of legend
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Shape Of Signaling Unit Head:
- square
- Net Weight:
- 0.023 kg
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- dark grey plastic
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1710010EN
- Main Group:
- illum push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK05 EN 50102
- Operator Additional Information:
- for insertion of legend
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sustainable Offer Status:
- Green Premium product
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
