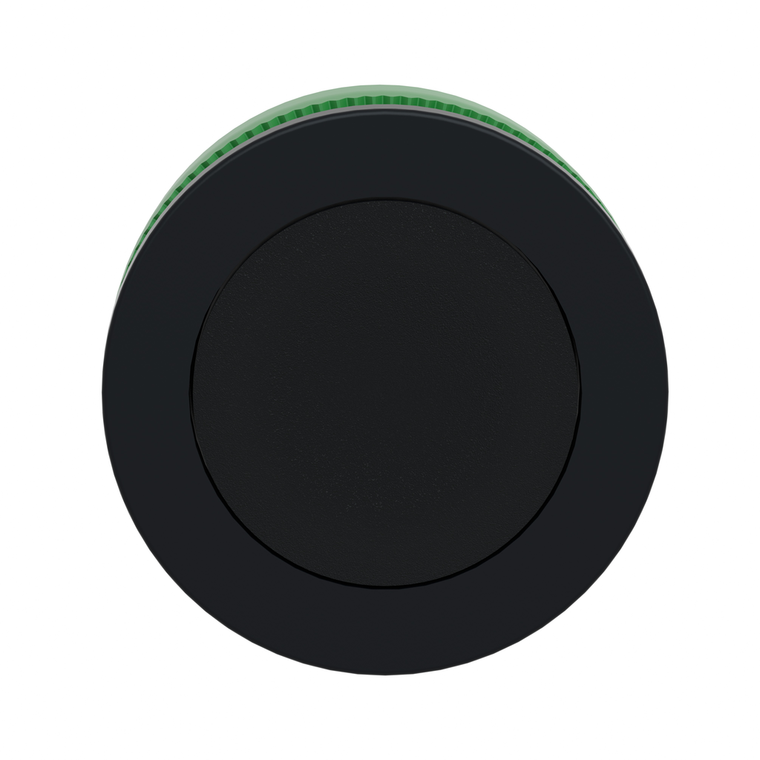

Schneider Electric ZB5FA2 Flush Mounted Black Flush Caps Pushbutto
Schneider Electric
$9.78
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Standards:
- IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Net Weight:
- 0.03 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Width:
- 37 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Product Certifications:
- DNV || GL || CSA || UL Listed || LROS (Lloyds register of shipping) || BV
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- Cad Overall Depth:
- 30 mm
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- black flush, unmarked
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Height:
- 37 mm
- Device Short Name:
- ZB5
- Environmental Disclosure:
- ENVPEP1710010EN
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for non-illuminated push-button
- Datasheet:
- View
