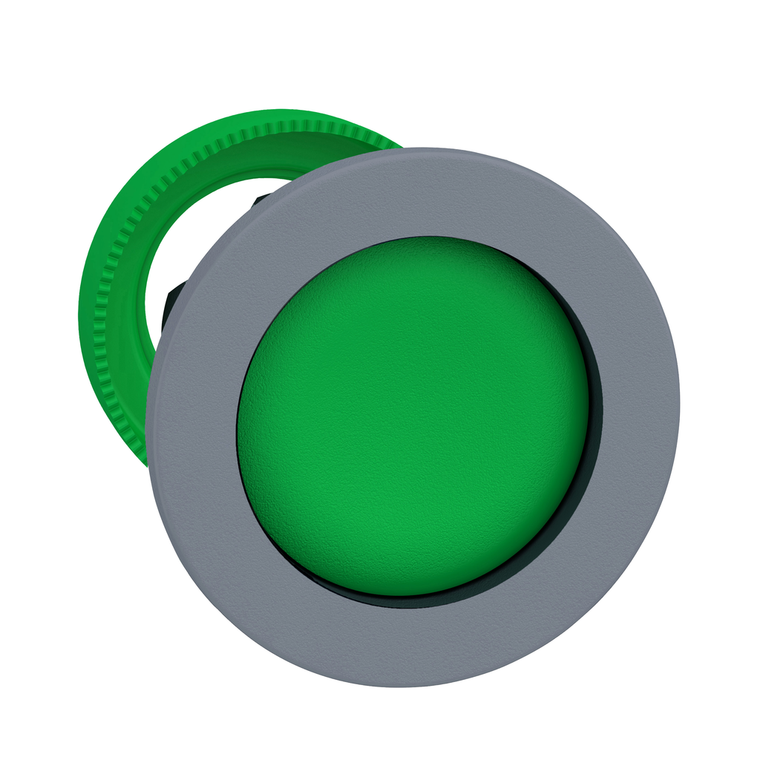

Schneider Electric ZB5FA36C0 Flush Mounted Green Pb Head Recessed
Schneider Electric
$23.80
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- built-in-flush
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Operator Additional Information:
- high guard
- Device Presentation:
- basic element
- Cad Overall Height:
- 37 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Bezel Material:
- plastic colour plated grey
- Warranty:
- 18 months
- Cad Overall Depth:
- 30 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- head for non-illuminated push-button
- Product Certifications:
- UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV || DNV
- Ik Degree Of Protection:
- IK03 IEC 50102
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Overvoltage Category:
- class II IEC 60536
- Operator Profile:
- green recessed, unmarked
- Type Of Operator:
- spring return
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Net Weight:
- 0.03 kg
- Mechanical Durability:
- 10000000 cycles
- Range Of Product:
- Harmony XB5
- Protective Treatment:
- TH
- Standards:
- IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Datasheet:
- View
