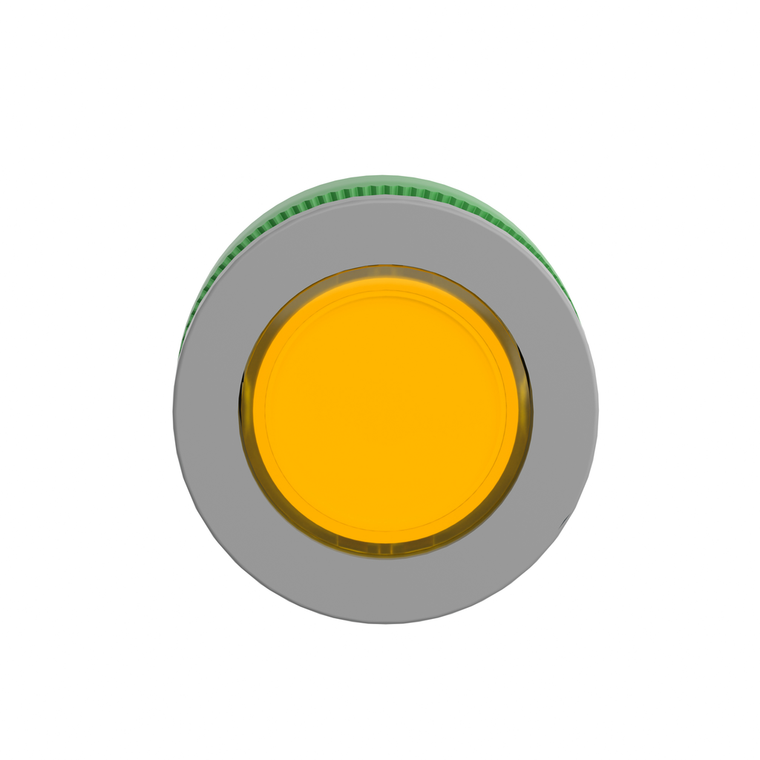

Schneider Electric ZB5FA58C0 Flmnt Yellow Cap Pbhead-Legend Insertion
Schneider Electric
$13.11
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Operator Profile:
- orange flush, unmarked
- Protective Treatment:
- TC
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Bezel Material:
- plastic colour plated grey
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Operation:
- -40-70 °C
- Group Of Product:
- flush push with inser of legend
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30.5 mm
- Standards:
- GB 14048.5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
- Cad Overall Width:
- 37 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK03 EN 50102
- Product Or Component Type:
- head for illuminated push-button
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.017 kg
- Marking:
- unmarked
- Product Certifications:
- GL || CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- built-in-flush
- Cad Overall Height:
- 37 mm
- Product Compatibility:
- universal LED
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mechanical Durability:
- 10000000 cycles
- Cap/Operator Or Lens Colour:
- orange
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Cad Overall Depth:
- 30 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Additional Information:
- for insertion of legend
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Overvoltage Category:
- class II IEC 60536
- Type Of Operator:
- spring return
- Device Presentation:
- basic element
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Range Of Product:
- Harmony XB5
- Main Group:
- illum push-button
- Datasheet:
- View
