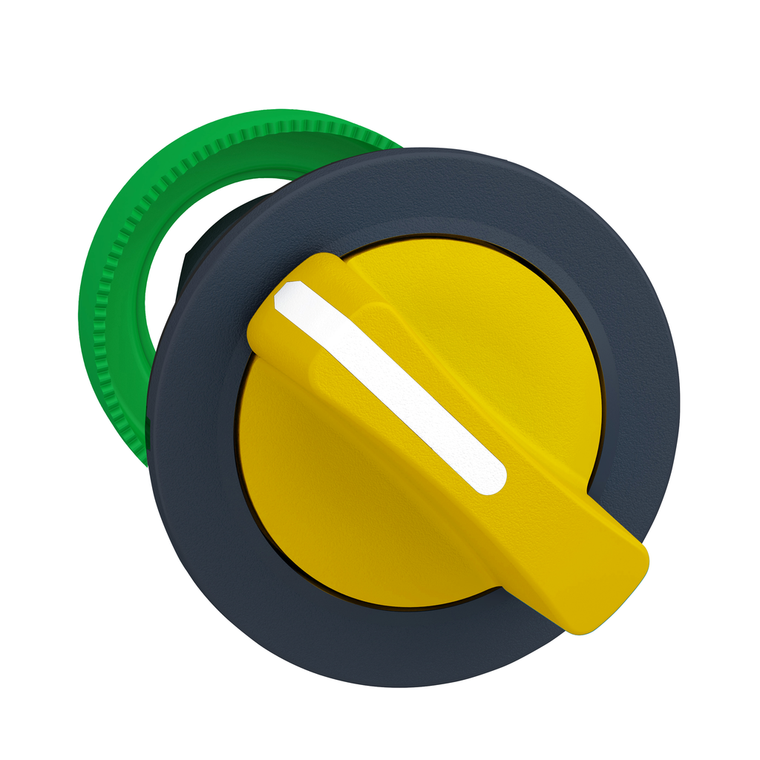

Schneider Electric ZB5FD205 Flush Mounted Yellow Selector Switch Hea
Schneider Electric
$17.86
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Cad Overall Depth:
- 46 mm
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for selector switch
- Cad Overall Height:
- 37 mm
- Operator Position Information:
- 2 positions 90°
- Mechanical Durability:
- 1000000 cycles
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Device Short Name:
- ZB5
- Cad Overall Width:
- 37 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || CSA || BV || UL Listed || GL
- Environmental Disclosure:
- ENVPEP1710010EN
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- stay put
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Circularity Profile:
- ENVEOLI1710010EN
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Overvoltage Category:
- class II IEC 60536
- Head Type:
- built-in-flush
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Ambient Air Temperature For Operation:
- -40-70 °C
- Net Weight:
- 0.031 kg
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- yellow standard handle
- Mounting Diameter:
- 30.5 mm
- Reach Free Of Svhc:
- Yes
