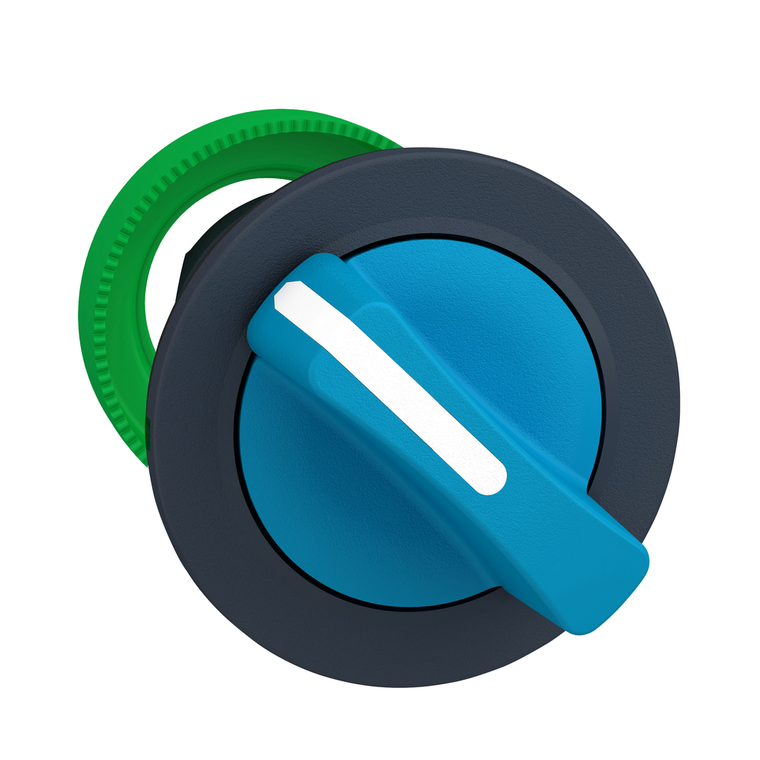

Schneider Electric ZB5FD206 Flush Mounted Blue Selector Switch Head
Schneider Electric
$17.86
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Head Type:
- built-in-flush
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Protective Treatment:
- TH
- Net Weight:
- 0.031 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name:
- ZB5
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- blue standard handle
- Ik Degree Of Protection:
- IK03 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Cad Overall Height:
- 37 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Width:
- 37 mm
- Mechanical Durability:
- 1000000 cycles
- Circularity Profile:
- ENVEOLI1710010EN
- Reach Free Of Svhc:
- Yes
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Type Of Operator:
- stay put
- Operator Position Information:
- 2 positions 90°
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Product Or Component Type:
- head for key selector switch
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Range Of Product:
- Harmony XB5
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || CSA || BV || UL Listed || GL
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 46 mm
- Mounting Diameter:
- 30.5 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Datasheet:
- View
