Schneider Electric ZB5FD3C0 Flsmntd Black Sel Sw Head 3Pos Stay Put
Schneider Electric
$22.24
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

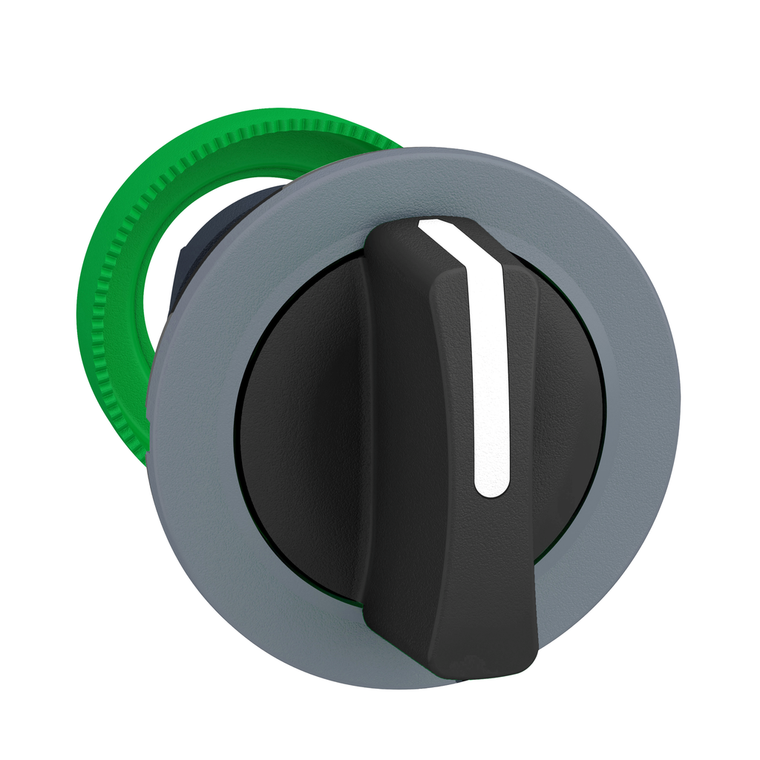

Schneider Electric ZB5FD3C0 Flsmntd Black Sel Sw Head 3Pos Stay Put
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Product Or Component Type:
- head for selector switch
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Position Information:
- 3 positions +/- 45°
- Standards:
- UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Cad Overall Height:
- 37 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Operator:
- stay put
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Sale Per Indivisible Quantity:
- 1
- Protective Treatment:
- TH
- Ik Degree Of Protection:
- IK03 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Width:
- 37 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.031 kg
- Bezel Material:
- plastic colour plated grey
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 1000000 cycles
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 46 mm
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- basic element
- Device Short Name:
- ZB5
- Mounting Diameter:
- 30.5 mm
- Head Type:
- built-in-flush
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Product Certifications:
- UL Listed || GL || DNV || LROS (Lloyds register of shipping) || BV || CSA
- Operator Profile:
- black standard handle
- Datasheet:
- View
