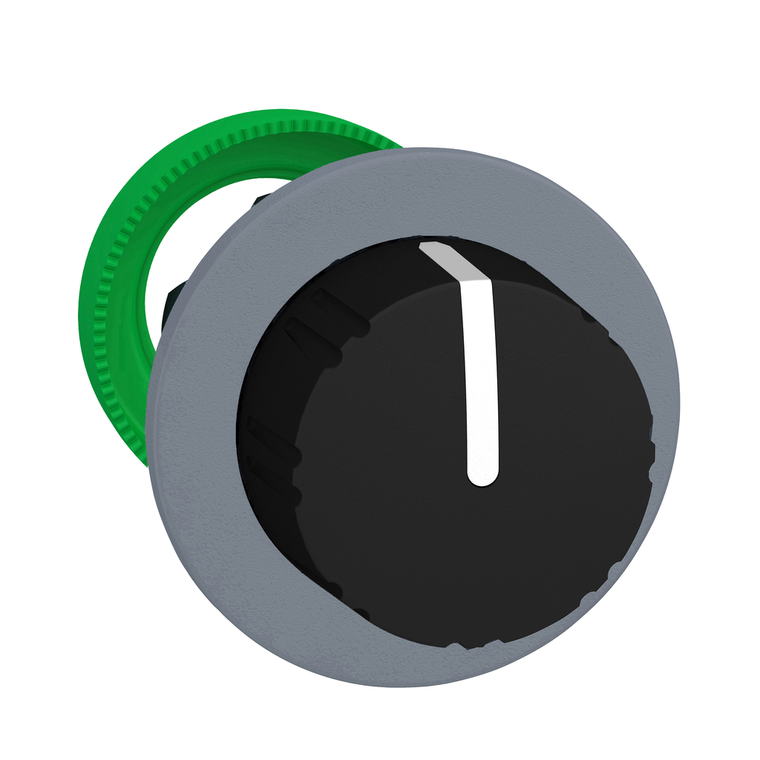

Schneider Electric ZB5FD59C0 Flush Mounted Black Selector Switch Head
Schneider Electric
$18.41
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Mechanical Durability:
- 1000000 cycles
- Cad Overall Depth:
- 46 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XB5
- Net Weight:
- 0.034 kg
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Cad Overall Height:
- 37 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Protective Treatment:
- TH
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Presentation:
- basic element
- Type Of Operator:
- to centre spring return
- Cad Overall Width:
- 37 mm
- Operator Position Information:
- 3 positions +/- 45°
- Operator Profile:
- black knurled knob
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shape Of Signaling Unit Head:
- round
- Head Type:
- built-in-flush
- Bezel Material:
- plastic colour plated grey
- Product Or Component Type:
- head for selector switch
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 30.5 mm
- Product Certifications:
- UL Listed || CSA || GL || DNV || BV || LROS (Lloyds register of shipping)
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Datasheet:
- View
