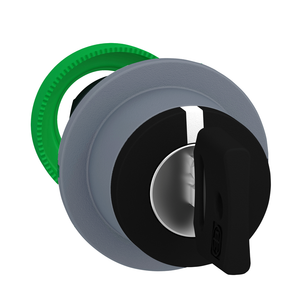

Schneider Electric ZB5FG05C0 Flush Mounted Selector Switch Head Key
Schneider Electric
$57.16
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Product Certifications:
- DNV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA || BV
- Ik Degree Of Protection:
- IK03 IEC 50102
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 72 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Cad Overall Height:
- 37 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Key Withdrawal Position:
- left and center
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Short Name:
- ZB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.069 kg
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Type Of Keylock:
- key 455
- Bezel Material:
- plastic colour plated grey
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for key selector switch
- Type Of Operator:
- right to centre spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Head Type:
- built-in-flush
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-1
- Cad Overall Width:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Sale Per Indivisible Quantity:
- 1
- Operator Position Information:
- 3 positions +/- 45°
- Operator Profile:
- black key switch
- Range Of Product:
- Harmony XB5
- Device Presentation:
- basic element
- Datasheet:
- View
