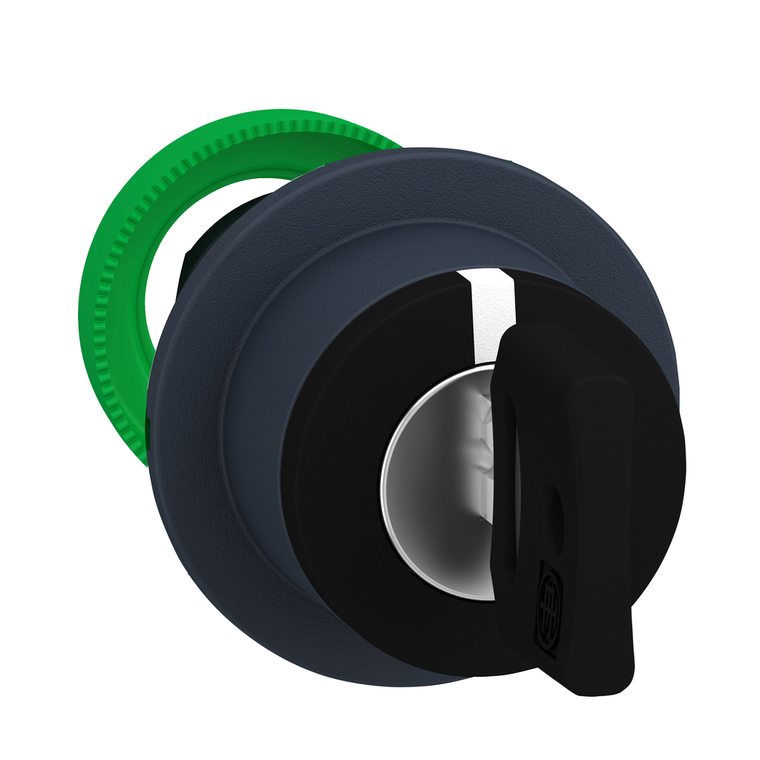

Schneider Electric ZB5FG1 Flush Mounted Selector Switch Head Key 4
Schneider Electric
$85.48
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm key selector switch head, Ronis 455 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- China Rohs Regulation:
- X
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Bezel Material:
- dark grey plastic
- Cad Overall Height:
- 37 mm
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Keylock:
- key 455
- Ambient Air Temperature For Operation:
- -40-70 °C
- Net Weight:
- 0.069 kg
- Operator Position Information:
- 3 positions +/- 45°
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for key selector switch
- Range Of Product:
- Harmony XB5
- Head Type:
- built-in-flush
- Mechanical Durability:
- 1000000 cycles
- Ik Degree Of Protection:
- IK03 IEC 50102
- Type Of Operator:
- left to centre spring return
- Circularity Profile:
- ENVEOLI1710010EN
- Key Withdrawal Position:
- right
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Diameter:
- 30.5 mm
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 72 mm
- Cad Overall Width:
- 37 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || GL || UL Listed || DNV || BV
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Short Name:
- ZB5
- Operator Profile:
- black key switch
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Datasheet:
- View
