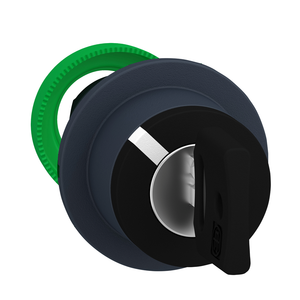

Schneider Electric ZB5FG6D Flush Mounted Selector Switch Head Key 3
Schneider Electric
$66.37
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm key selector switch head, dom 8d1 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Head Type:
- built-in-flush
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK03 IEC 50102
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Standards:
- EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Cad Overall Depth:
- 72 mm
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Keylock:
- Dom 8D1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for key selector switch
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1710010EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 2 positions 90°
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.069 kg
- Bezel Material:
- dark grey plastic
- Key Withdrawal Position:
- left
- Mounting Diameter:
- 30.5 mm
- Mechanical Durability:
- 1000000 cycles
- Range Of Product:
- Harmony XB5
- Cad Overall Height:
- 37 mm
- Type Of Operator:
- right to left spring return
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- black key switch
- Datasheet:
- View
