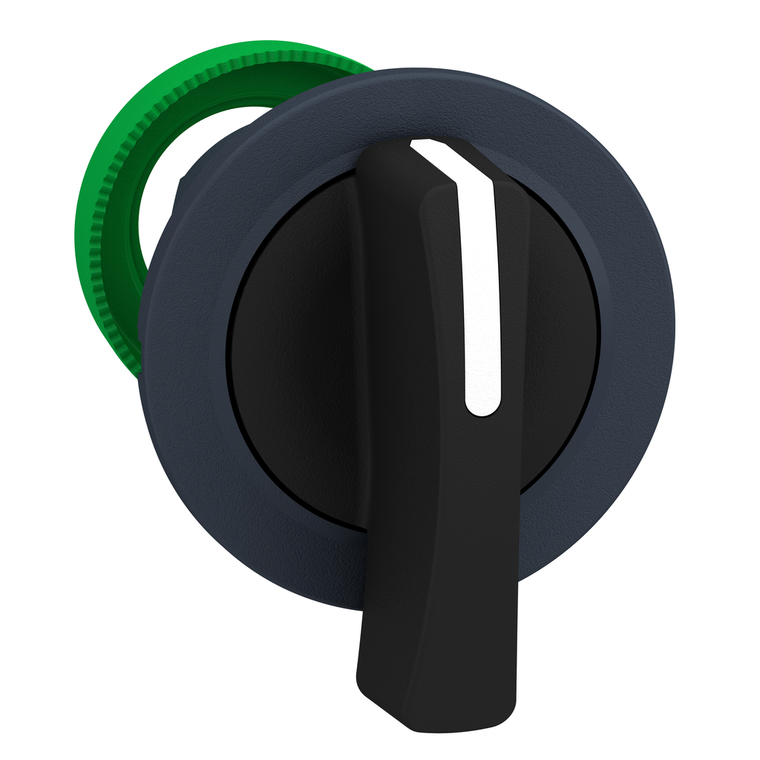

Schneider Electric ZB5FJ2 Flush Mounted Black Selector Switch Head
Schneider Electric
$24.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 2 positions 90°
- Sale Per Indivisible Quantity:
- 1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Additional Information:
- non padlockable
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Operator:
- stay put
- Operator Profile:
- black long handle
- China Rohs Regulation:
- X
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- BV || GL || DNV || CSA || UL Listed || LROS (Lloyds register of shipping)
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Bezel Material:
- dark grey plastic
- Cad Overall Width:
- 37 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Height:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Ik Degree Of Protection:
- IK03 IEC 50102
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Head Type:
- built-in-flush
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for selector switch
- Cad Overall Depth:
- 46 mm
- Net Weight:
- 0.031 kg
- Reach Free Of Svhc:
- Yes
