Schneider Electric ZB5FJ4C0 Flush Mounted Black Selector Switch Head
Schneider Electric
$26.64
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

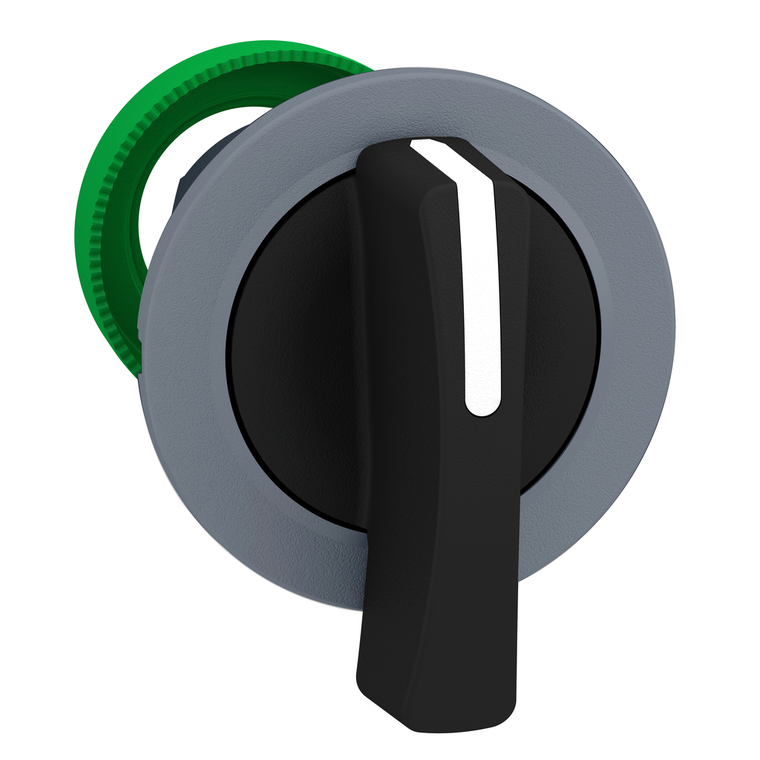

Schneider Electric ZB5FJ4C0 Flush Mounted Black Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Operator Profile:
- black long handle
- Mounting Diameter:
- 30.5 mm
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 46 mm
- Net Weight:
- 0.031 kg
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB5
- Head Type:
- built-in-flush
- Bezel Material:
- plastic colour plated grey
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Height:
- 37 mm
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Product Or Component Type:
- head for selector switch
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- basic element
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 37 mm
- China Rohs Regulation:
- X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- right to left spring return
- Mechanical Durability:
- 1000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || CSA || GL || BV || UL Listed
- Operator Position Information:
- 2 positions 90°
- Operator Additional Information:
- non padlockable
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Datasheet:
- View
