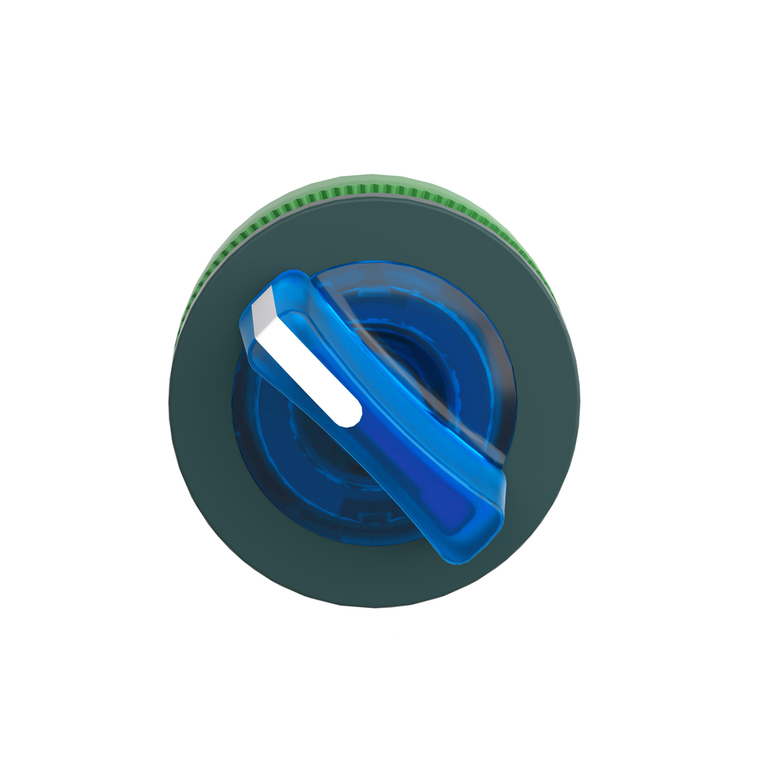

Schneider Electric ZB5FK1263 Flush Mounted Blue Illum Selector Switch
Schneider Electric
$25.95
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Product Compatibility:
- universal LED
- Product Or Component Type:
- head for illuminated selector switch
- Bezel Material:
- dark grey plastic
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Width:
- 37 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- blue standard handle
- Device Short Name:
- ZB5
- Net Weight:
- 0.03 kg
- Environmental Disclosure:
- ENVPEP1710010EN
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Cad Overall Depth:
- 46 mm
- Type Of Operator:
- stay put
- Product Certifications:
- BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping) || CSA
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- built-in-flush
- Cad Overall Height:
- 37 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB5
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Position Information:
- 2 positions 90°
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Datasheet:
- View
