Schneider Electric ZB5FK1333C0 Flmnt Green Ill Selsw Head 3Pos Stay Put
Schneider Electric
$39.47
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FK1333C0 Flmnt Green Ill Selsw Head 3Pos Stay Put

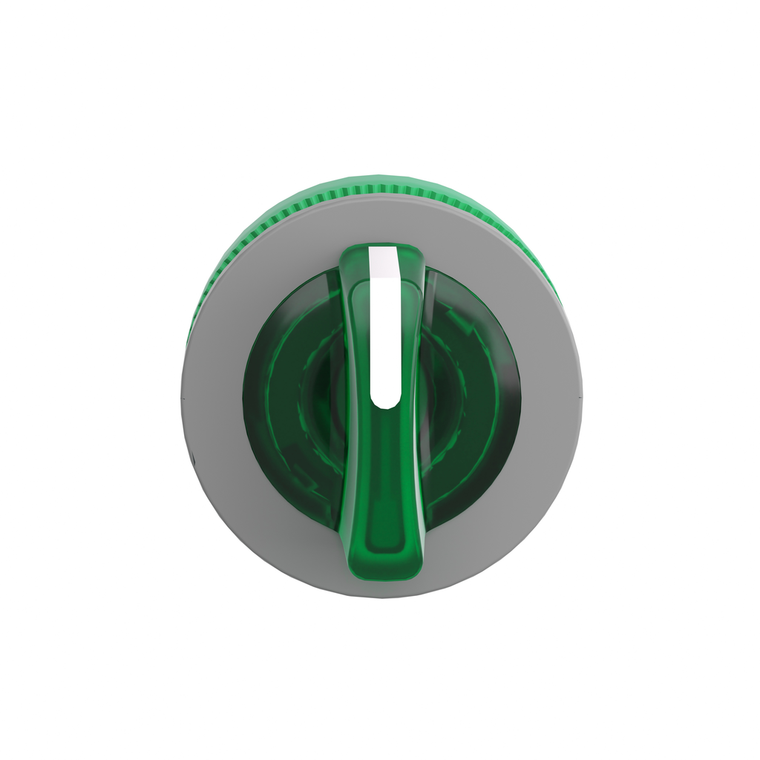

This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Net Weight:
- 0.03 kg
- Head Type:
- built-in-flush
- Overvoltage Category:
- class II IEC 60536
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK03 IEC 50102
- Operator Position Information:
- 3 positions +/- 45°
- Standards:
- EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Mounting Diameter:
- 30.5 mm
- Product Or Component Type:
- head for illuminated selector switch
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Height:
- 37 mm
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 37 mm
- Operator Profile:
- green standard handle
- Type Of Operator:
- stay put
- Product Certifications:
- GL || DNV || BV || CSA || UL Listed || LROS (Lloyds register of shipping)
- Range Of Product:
- Harmony XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Presentation:
- basic element
- Cad Overall Depth:
- 46 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 500000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Compatibility:
- universal LED
- Datasheet:
- View
