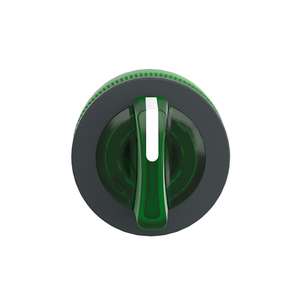

Schneider Electric ZB5FK1433 Flush Mounted Green Illum Selector Switc
Schneider Electric
$51.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FK1433 Flush Mounted Green Illum Selector Switc
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Profile:
- green standard handle
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK03 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1710010EN
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Head Type:
- built-in-flush
- Range Of Product:
- Harmony XB5
- Operator Position Information:
- 2 positions 90°
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Type Of Operator:
- right to left spring return
- Overvoltage Category:
- class II IEC 60536
- Product Compatibility:
- universal LED
- Cad Overall Width:
- 37 mm
- Cad Overall Height:
- 37 mm
- Product Or Component Type:
- head for illuminated selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 46 mm
- Device Short Name:
- ZB5
- Product Certifications:
- CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || GL || BV
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 500000 cycles
- Net Weight:
- 0.03 kg
- Bezel Material:
- dark grey plastic
- Reach Free Of Svhc:
- Yes
- Datasheet:
- View
