Schneider Electric ZB5FL3C0 Flush Mounted Green Projecting Pb Head
Schneider Electric
$15.11
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FL3C0 Flush Mounted Green Projecting Pb Head

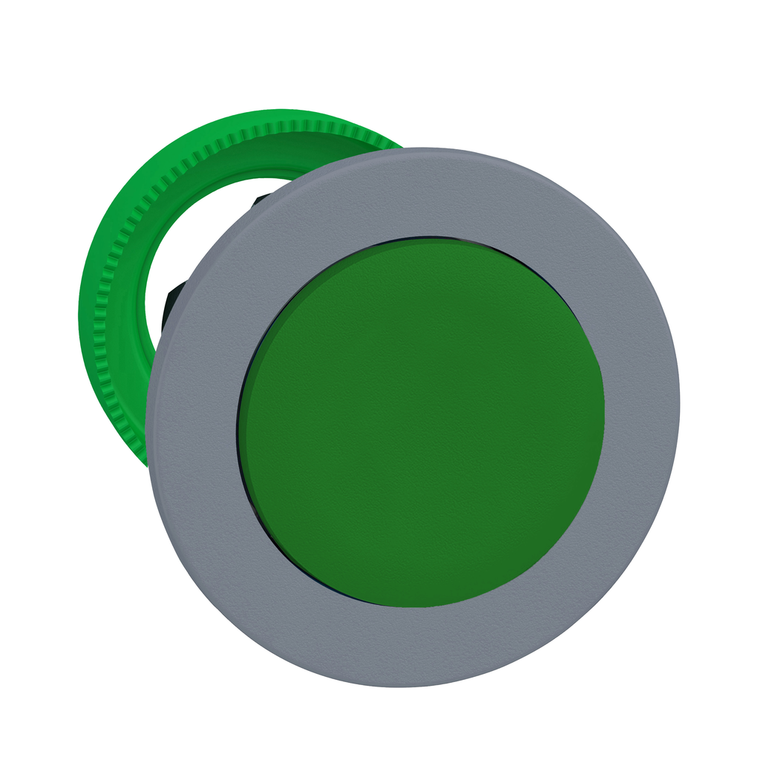

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cad Overall Width:
- 37 mm
- Warranty:
- 18 months
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Mounting Diameter:
- 30.5 mm
- Cad Overall Depth:
- 32 mm
- Head Type:
- built-in-flush
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- green projecting, unmarked
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- China Rohs Regulation:
- X
- Product Certifications:
- UL Listed || BV || GL || LROS (Lloyds register of shipping) || DNV || CSA
- Cad Overall Height:
- 37 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Product Or Component Type:
- head for non-illuminated push-button
- Net Weight:
- 0.031 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Bezel Material:
- plastic colour plated grey
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
