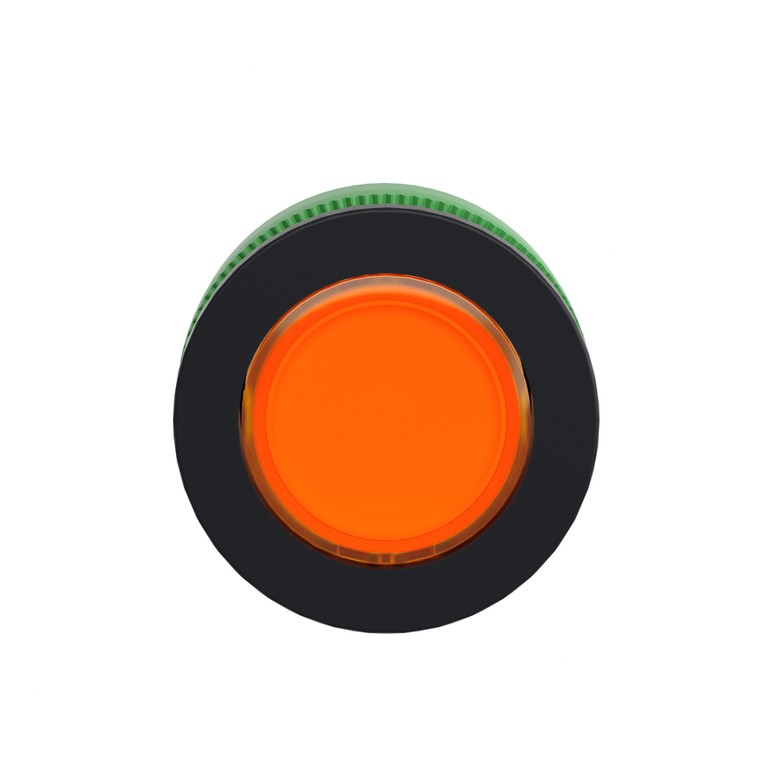

Schneider Electric ZB5FV053 Flush Mounted Orange Pilot Light Head Fo
Schneider Electric
$5.81
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Additional Information:
- with plain lens
- Cad Overall Height:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Device Presentation:
- basic element
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- built-in-flush
- Device Short Name:
- ZB5
- Cad Overall Depth:
- 30 mm
- Product Compatibility:
- universal LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 37 mm
- Mercury Free:
- Yes
- Cap/Operator Or Lens Colour:
- yellow
- Net Weight:
- 0.015 kg
- Circularity Profile:
- ENVEOLI1710010EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Overvoltage Category:
- class II IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- Bezel Material:
- dark grey plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
- Product Or Component Type:
- head for pilot light
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Datasheet:
- View
