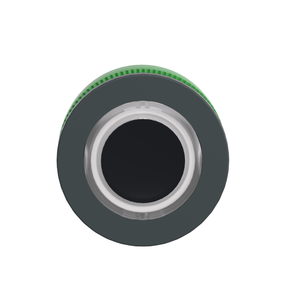

Schneider Electric ZB5FW313 Flush Mounted White Flush Caps Illum Pus
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cap/Operator Or Lens Colour:
- white
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TC
- Circularity Profile:
- ENVEOLI1710010EN
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cad Overall Height:
- 37 mm
- Cad Overall Width:
- 37 mm
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Net Weight:
- 0.017 kg
- Operator Profile:
- white flush, unmarked
- Range Of Product:
- Harmony XB5
- Product Compatibility:
- universal LED
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Head Type:
- built-in-flush
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Sustainable Offer Status:
- Green Premium product
- Marking:
- unmarked
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 30 mm
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK03 EN 50102
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- Toxic Heavy Metal Free:
- Yes
- Group Of Product:
- flush push integral LED
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for illuminated push-button
- Bezel Material:
- dark grey plastic
- Main Group:
- illum push-button
- Product Certifications:
- CSA || BV || DNV || LROS (Lloyds register of shipping) || UL Listed || GL
- Mercury Free:
- Yes
- Device Presentation:
- basic element
- Type Of Operator:
- spring return
- Operator Additional Information:
- with plain lens
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
