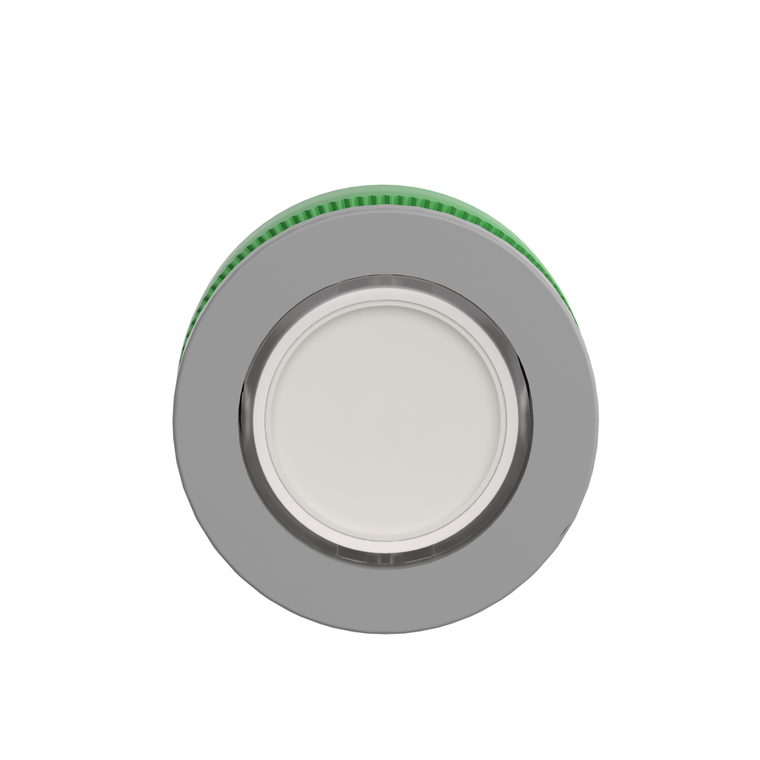

Schneider Electric ZB5FW313C0 Flsmntd White Cap Illum Pb Head-Int Led
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Head Type:
- built-in-flush
- Operator Profile:
- white flush, unmarked
- Cap/Operator Or Lens Colour:
- white
- Protective Treatment:
- TC
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 30 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK03 EN 50102
- Mercury Free:
- Yes
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Product Compatibility:
- universal LED
- Bezel Material:
- plastic colour plated grey
- Group Of Product:
- flush push integral LED
- Marking:
- unmarked
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Height:
- 37 mm
- Shape Of Signaling Unit Head:
- round
- Main Group:
- illum push-button
- Net Weight:
- 0.017 kg
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic element
- Operator Additional Information:
- with plain lens
- Cad Overall Width:
- 37 mm
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Mounting Diameter:
- 30.5 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- CSA || BV || DNV || LROS (Lloyds register of shipping) || UL Listed || GL
