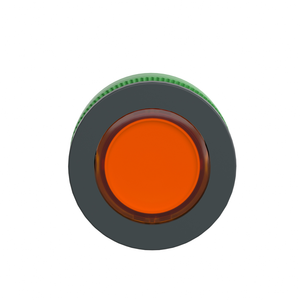

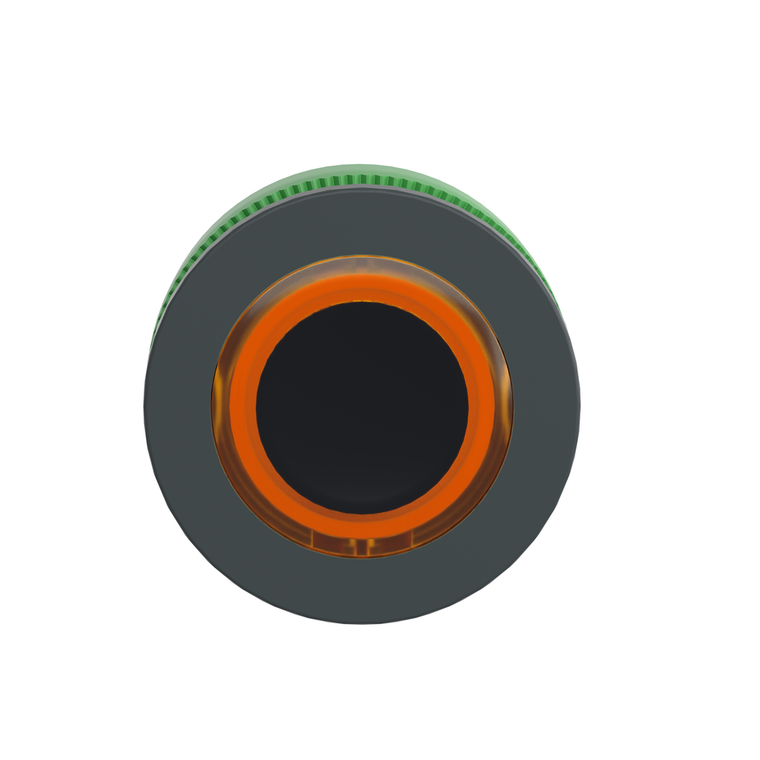

Schneider Electric ZB5FW953 Flush Mounted Orange Flush Caps Illum Pu
Schneider Electric
$21.40
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Device Short Name:
- ZB5
- Head Type:
- built-in-flush
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Mounting Diameter:
- 30.5 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Overvoltage Category:
- class II IEC 60536
- Group Of Product:
- flush push with ring illum LED
- Toxic Heavy Metal Free:
- Yes
- Operator Additional Information:
- with illuminated ring
- Main Group:
- illum push-button
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Marking:
- unmarked
- Cap/Operator Or Lens Colour:
- orange
- Product Certifications:
- UL Listed || DNV || BV || CSA || LROS (Lloyds register of shipping) || GL
- Ik Degree Of Protection:
- IK03 EN 50102
- Circularity Profile:
- ENVEOLI1710010EN
- Product Or Component Type:
- head for illuminated push-button
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 30 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- spring return
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Product Compatibility:
- universal LED
- Sale Per Indivisible Quantity:
- 1
- Net Weight:
- 0.017 kg
- China Rohs Regulation:
- X
- Operator Profile:
- orange flush, unmarked
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Environmental Disclosure:
- ENVPEP1710010EN
- Bezel Material:
- dark grey plastic
- Cad Overall Height:
- 37 mm
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TC
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 37 mm
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Datasheet:
- View
