Schneider Electric

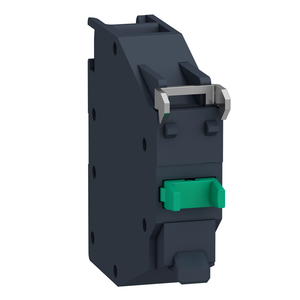

Schneider Electric ZBE102GEX Aex Nc Contact Block

SKU:

ZBE102GEX

UPC:

3606489486129

MPN:

Condition:

New

Mounting Of Block:

front mounting

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contacts Usage:

gas protected contact

Cad Overall Depth:

42.4 mm

Marking:

Ex db eb IIC Gb

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

contact block

Range Of Product:

Harmony XB4

Device Short Name:

ZBE

Product Certifications:

cULus

Rohs Exemption Information:

Yes

Operating Force:

2.873 N

Cad Overall Height:

10 mm

Sale Per Indivisible Quantity:

1

Environmental Characteristic:

hazardous location class I division 2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ie] Rated Operational Current:

1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1

Cad Overall Width:

38 mm

Ambient Air Temperature For Operation:

-50-75 °C

Circularity Profile:

ENVEOLI1808008EN

Operating Travel:

1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)

Ambient Air Temperature For Storage:

-50-70 °C

Net Weight:

0.019 kg

Reach Free Of Svhc:

Yes

Mechanical Durability:

1000000 cycles

Positive Opening:

with

Connections - Terminals:

screw clamp terminals, 2 x 1.5 mm² without cable end || screw clamp terminals, 1 x 2.5 mm² with cable end

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Contact Operation:

standard

China Rohs Regulation:

X

[Ui] Rated Insulation Voltage:

415 V

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Contacts Type And Composition:

1 NC

Contact Block Type:

single

Protective Treatment:

TH

Environmental Disclosure:

ENVPEP1808008EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

UL 60079-31 || UL 60079-0 || UL 60079-1 || ANSI/ISA 12.12.01 || EN/IEC 60079-0 || EN/IEC 60079-31 || CSA C22.2 No 213 || EN/IEC 60079-1 || EN/IEC 60079-7

Tightening Torque:

0.8-1.2 N.m IEC 60947-1
