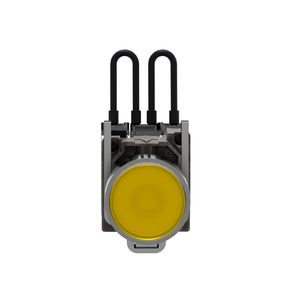

Schneider Electric ZBZG156 120V Test Pilot Light

Schneider Electric ZBZG156 120V Test Pilot Light

Schneider Electric
SKU:
ZBZG156
|
UPC:
3389118030107
Availability:
Contact us to confirm availability and lead times.
$40.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony ZB, single light block for test light function has 1 connecting wire. It is supplied with 12V AC/DC. It is compatible with Harmony XB4 and XB5. This single light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Warranty:
18 months
Standards:
UL 508 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520
Circularity Profile:
ENVEOLI1808008EN
Light Block Type:
single block for test light function
Product Compatibility:
integral LED || BA 9s
Toxic Heavy Metal Free:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Connection:
1 wire
Electrical Shock Protection Class:
class I Harmony XB4 IEC 60536 || class II Harmony XB5 IEC 60536
Environmental Disclosure:
ENVPEP1808008EN
Shock Resistance:
30 gn 18 ms IEC 60068-2-27 || 50 gn 11 ms IEC 60068-2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation:
-25-70 °C
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
12 V AC/DC || 24 V AC/DC || 24...120 V AC/DC
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
China Rohs Regulation:
X
Product Or Component Type:
block for test light
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony XB4 || Harmony XB5
Material:
plastic
Rohs Exemption Information:
Yes
Product Certifications:
LROS (Lloyds register of shipping) || UL Listed || DNV || BV || CSA || GL
Net Weight:
0.01 kg
Ambient Air Temperature For Storage:
-40-70 °C
