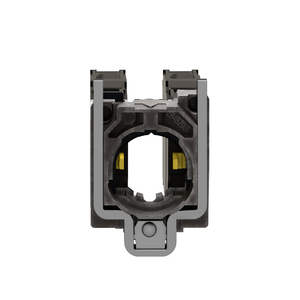

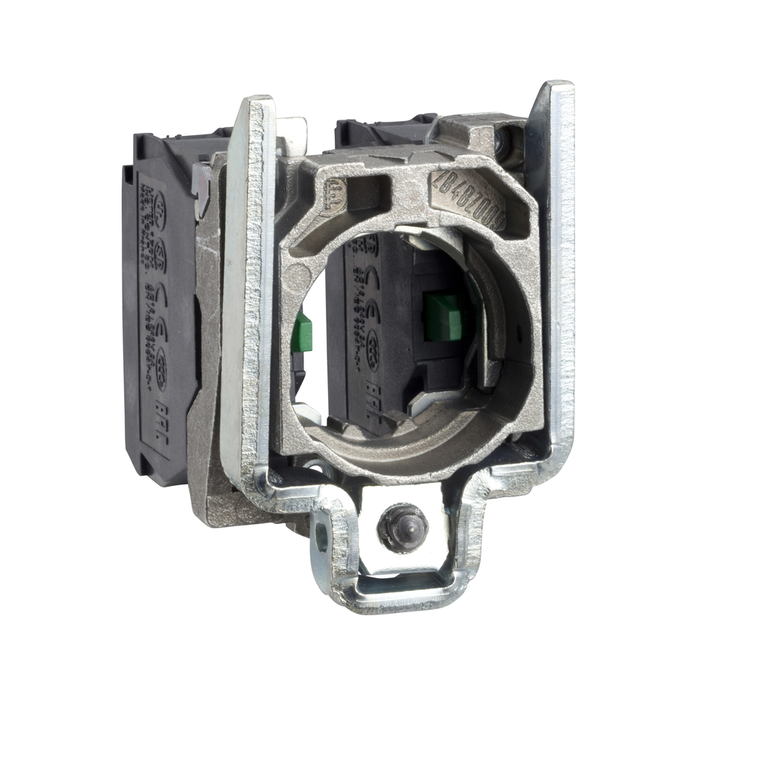

Schneider Electric ZD4PA103 Joystick Body

Schneider Electric ZD4PA103 Joystick Body

Schneider Electric
SKU:
ZD4PA103
|
UPC:
3.38911E+12
$111.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XB4 contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.
Additional Information
Rohs Exemption Information:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage:
-40-70 °C
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
UL Listed || CSA || GL || BV || DNV || LROS (Lloyds register of shipping)
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Range Of Product:
Harmony XB4
Ambient Air Temperature For Operation:
-25-70 °C
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Contacts Usage:
standard
Contacts Material:
silver alloy (Ag/Ni)
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Positive Opening:
without
Electrical Shock Protection Class:
class I IEC 60536
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Sale Per Indivisible Quantity:
1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Product Or Component Type:
complete body/contact assembly for joystick controller
Fixing Collar Material:
zamak
Warranty:
18 months
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Cad Overall Width:
30 mm
Circularity Profile:
N/A
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contacts Type And Composition:
2 NO
Standards:
IEC 60947-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Device Short Name:
ZD4
Contact Operation:
slow-break
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Height:
47 mm
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Device Presentation:
basic element
Mechanical Durability:
1000000 cycles
Net Weight:
0.049 kg
